Ceratizit MA.BMT68.VMA.25 CoreLine - EMAG - - Multi Square Section Tool Holder 8248602003 (0831130)
Ceratizit MA.BMT68.VMA.25 CoreLine - EMAG - - Multi Square Section Tool Holder 8248602003 (0831130)
Couldn't load pickup availability
Ceratizit Article Number: 8248602003
Ceratizit Material Number: 8248602003
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

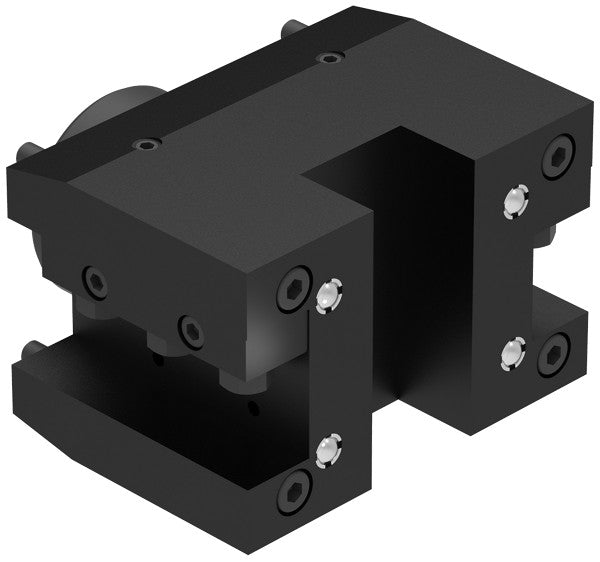

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

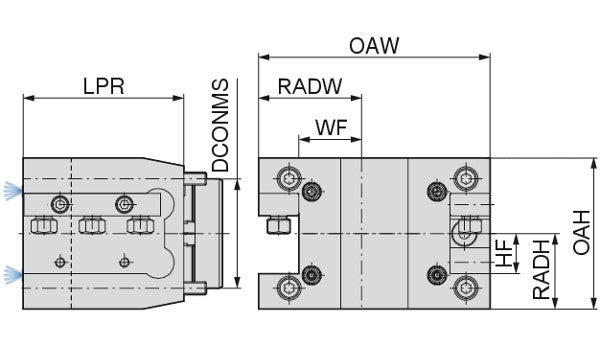

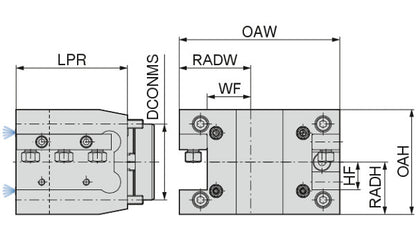

| Properties | ||
|---|---|---|
| Name | Ceratizit MA.BMT68.VMA.25 CoreLine - EMAG - - Multi Square Section Tool Holder 8248602003 | |
| EDP # | 0831130 | |
| Mounting spigot diameter / DCONMS | 2.6772" | 68.000 mm |
| Overall width / OAW | 5.6693" | 144.000 mm |
| Overall height / OAH | 3.7008" | 94.000 mm |
| Protruding length / LPR | 3.9370" | 100.000 mm |
| Functional height / HF | 0.9843" | 25.000 mm |
| Radial height / RADH | 1.8504" | 47.000 mm |
| Functional width / WF | 1.5354" | 39.000 mm |
| Mazak | ||
| Machine interface size | BMT 68 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
