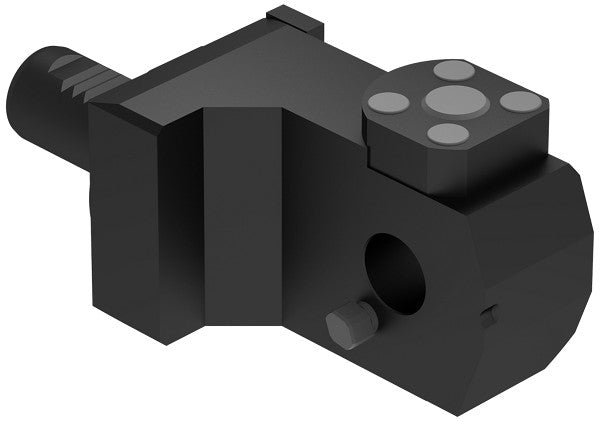

Ceratizit ISO10889.VDI25/VDI20.AD-90°.75.R/L CoreLine To adapter, Double Sided 8322502028 (0831350)
Ceratizit ISO10889.VDI25/VDI20.AD-90°.75.R/L CoreLine To adapter, Double Sided 8322502028 (0831350)
Couldn't load pickup availability
Ceratizit Article Number: 8322502028
Ceratizit Material Number: 8322502028
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

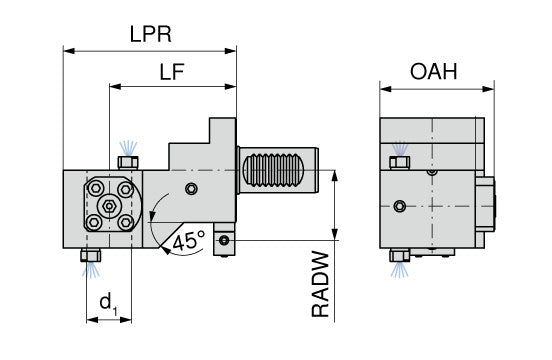

| Properties | ||
|---|---|---|
| Name | Ceratizit ISO10889.VDI25/VDI20.AD-90°.75.R/L CoreLine To adapter, Double Sided 8322502028 | |
| EDP # | 0831350 | |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.7874" | 20.000 mm |
| Cone clamping size | VDI 20 | |
| H2 | 2.3622" | 60.000 mm |
| B4 | 1.4567" | 37.000 mm |
| B3 | 2.5591" | 65.000 mm |
| Overall height / OAH | 2.6575" | 67.500 mm |
| Protruding length / LPR | 4.0945" | 104.000 mm |
| Functional length / LF | 2.9528" | 75.000 mm |
| Radial width / RADW | 1.5748" | 40.000 mm |
| Machine interface size | VDI 25 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
