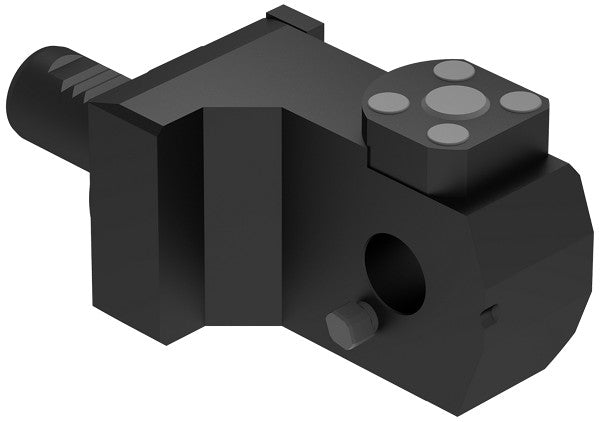

Ceratizit ISO10889.VDI30/VDI30.AD-90°.85.R/L CoreLine To adapter, Double Sided 8322503027 (0831352)
Ceratizit ISO10889.VDI30/VDI30.AD-90°.85.R/L CoreLine To adapter, Double Sided 8322503027 (0831352)
Couldn't load pickup availability
Ceratizit Article Number: 8322503027
Ceratizit Material Number: 8322503027
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

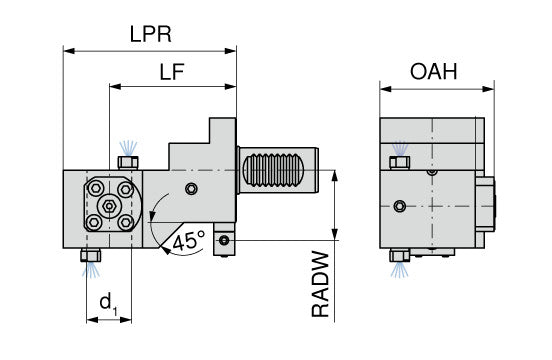

| Properties | ||
|---|---|---|
| Name | Ceratizit ISO10889.VDI30/VDI30.AD-90°.85.R/L CoreLine To adapter, Double Sided 8322503027 | |
| EDP # | 0831352 | |
| Mounting spigot diameter / DCONMS | 1.1811" | 30.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.1811" | 30.000 mm |
| Cone clamping size | VDI 30 | |
| H2 | 2.5197" | 64.000 mm |
| B4 | 2.0551" | 52.200 mm |
| B3 | 2.7559" | 70.000 mm |
| Overall height / OAH | 3.0118" | 76.500 mm |
| Protruding length / LPR | 4.5669" | 116.000 mm |
| Functional length / LF | 3.3465" | 85.000 mm |
| Radial width / RADW | 1.8504" | 47.000 mm |
| Machine interface size | VDI 30 | |
Background Information:
The ISO 10889 / DIN 69880 tool holder interface utliizes a cylindrical shank and a transverse, straight rack spline for mounting.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
