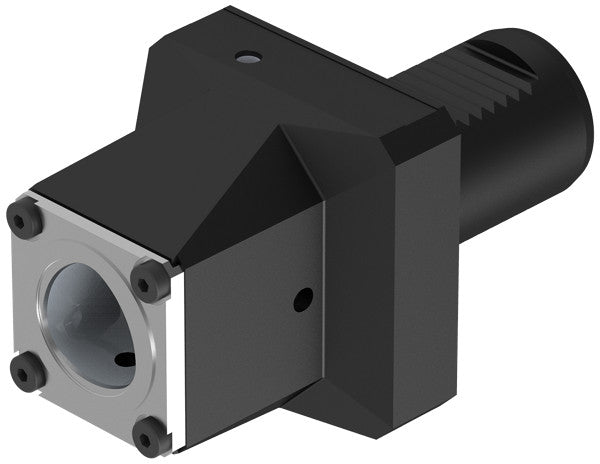

Ceratizit ISO10889.VDI40/PSC40.AD CoreLine - To Adapter 8323204026 (0831362)
Ceratizit ISO10889.VDI40/PSC40.AD CoreLine - To Adapter 8323204026 (0831362)
Couldn't load pickup availability
Ceratizit Article Number: 8323204026
Ceratizit Material Number: 8323204026
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ISO10889.VDI40/PSC40.AD CoreLine - To Adapter 8323204026 | |
| EDP # | 0831362 | |
| Machine interface size | VDI 40 | |
| Cone clamping size | PSC 40 | |
| Clamping diameter (DCONWS) / DCONWS | 1.5748" | 40.000 mm |
| nominal size / SZID | PSC 40 | |
| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |

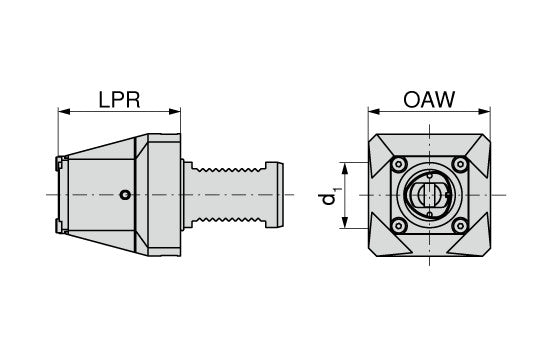

| Overall width / OAW | 2.9528" | 75.000 mm |
Background Information:
The ISO 10889 / DIN 69880 tool holder interface utliizes a cylindrical shank and a transverse, straight rack spline for mounting.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
