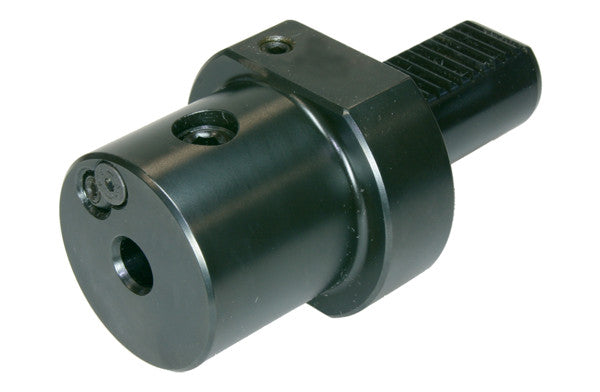

Ceratizit ISO10889.VDI30.E.ZA.12.67.IK CoreLine - Cylindrical Tool Holders 83269312 (0831387)
Ceratizit ISO10889.VDI30.E.ZA.12.67.IK CoreLine - Cylindrical Tool Holders 83269312 (0831387)
Couldn't load pickup availability
Ceratizit Article Number: 83269312
Ceratizit Material Number: 8326931200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

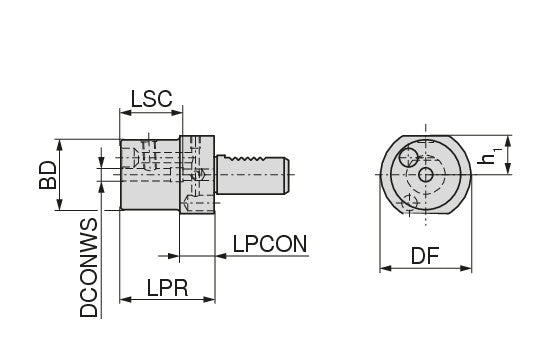

| Properties | ||
|---|---|---|
| Name | Ceratizit ISO10889.VDI30.E.ZA.12.67.IK CoreLine - Cylindrical Tool Holders 83269312 | |
| EDP # | 0831387 | |
| Machine interface size | VDI 30 | |
| Clamping diameter (DCONWS) / DCONWS | 0.4724" | 12.000 mm |
| Protruding length / LPR | 2.6378" | 67.000 mm |
| Neck diameter (BD) / BD | 2.0472" | 52.000 mm |
| Clamping length machine side / LSC | 1.7323" | 44.000 mm |
| H1 | 1.1024" | 28.000 mm |
| Connection protruding length / LPCON | 0.8661" | 22.000 mm |
| Mounting spigot diameter / DCONMS h6 | 1.1811" | 30.000 mm |
| Flange diameter / DF | 2.6772" | 68.000 mm |
Background Information:
The ISO 10889 / DIN 69880 tool holder interface utliizes a cylindrical shank and a transverse, straight rack spline for mounting.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
