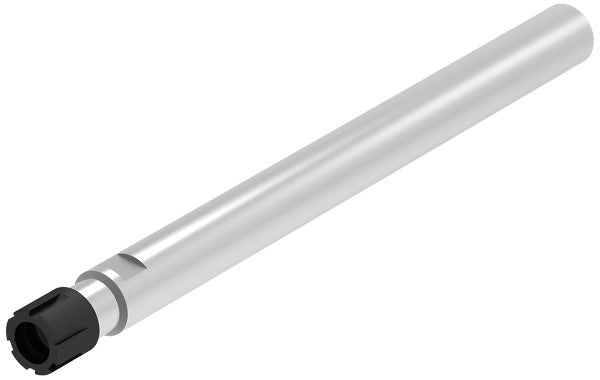

Ceratizit DIN1835.AD.SF.12.ER08.HA.155 CoreLine - Collet Chuck With Mini Lock Nut 83453122 (0831531)
Ceratizit DIN1835.AD.SF.12.ER08.HA.155 CoreLine - Collet Chuck With Mini Lock Nut 83453122 (0831531)
Couldn't load pickup availability
Ceratizit Article Number: 83453122
Ceratizit Material Number: 8345312200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

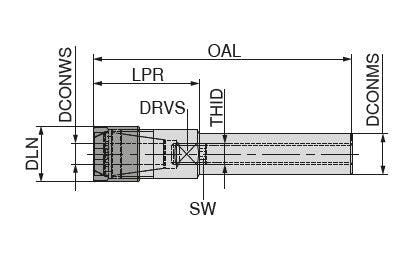

| Properties | ||
|---|---|---|
| Name | Ceratizit DIN1835.AD.SF.12.ER08.HA.155 CoreLine - Collet Chuck With Mini Lock Nut 83453122 | |
| EDP # | 0831531 | |
| Mounting spigot diameter / DCONMS h6 | 0.4724" | 12.000 mm |
| for collet | 4004E (ER08) | |
| Clamping Ø, nominal, workpc. side - range / DCONWS | 1 - 5 | |
| Diameter Lock Nut / DLN | 0.4724" | 12.000 mm |
| Protruding length / LPR | 0.7874" | 20.000 mm |
| Overall length / OAL | 6.1811" | 157.000 mm |
| Drive size / DRVS | 0.3937" | 10.000 mm |
| Thread designation inside / THID | M5x0,8 | |
| Schlüsselweite | 0.0984" | 2.500 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
