Ceratizit 19.GSE-ÜK.7,0.5,5.M7 Quick Change Tap Adapter With Overload Clutch 83612110 (0831587)
Ceratizit 19.GSE-ÜK.7,0.5,5.M7 Quick Change Tap Adapter With Overload Clutch 83612110 (0831587)
Couldn't load pickup availability
Ceratizit Article Number: 83612110
Ceratizit Material Number: 8361211000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

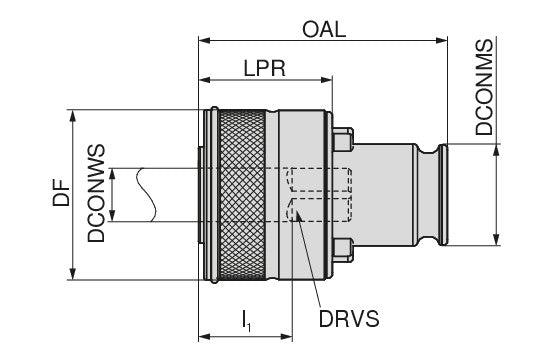

| Properties | ||
|---|---|---|
| Name | Ceratizit 19.GSE-ÜK.7,0.5,5.M7 Quick Change Tap Adapter With Overload Clutch 83612110 | |
| EDP # | 0831587 | |
| nominal size / SZID | 1.0000" | 25.400 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.2756" | 7.000 mm |
| Protruding length / LPR | 0.9843" | 25.000 mm |
| Mounting spigot diameter / DCONMS | 0.7480" | 19.000 mm |
| Shank - DIN 371 | M7 | |
| Overall length / OAL | 1.8307" | 46.500 mm |
| Drive size / DRVS | 0.2165" | 5.500 mm |
| Flange diameter / DF | 1.2992" | 33.000 mm |
| L1 | 0.6693" | 17.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
