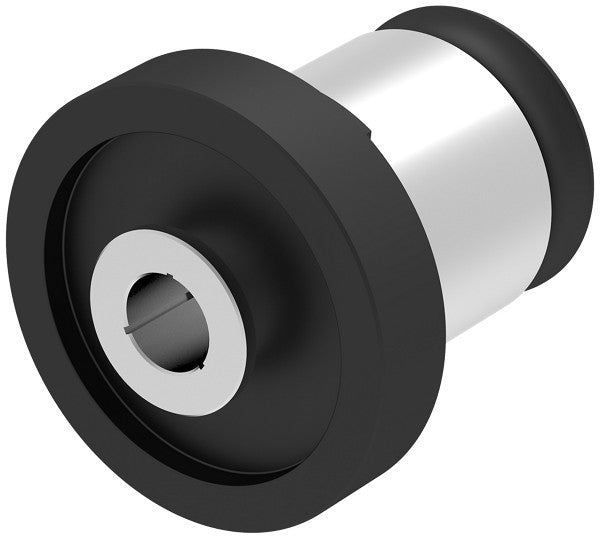

Ceratizit 31.GSE-IK.6,0.4,9 Quick Change Tap adapter, With Through Coolant 83614200 (0831617)
Ceratizit 31.GSE-IK.6,0.4,9 Quick Change Tap adapter, With Through Coolant 83614200 (0831617)
Couldn't load pickup availability
Ceratizit Article Number: 83614200
Ceratizit Material Number: 8361420000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

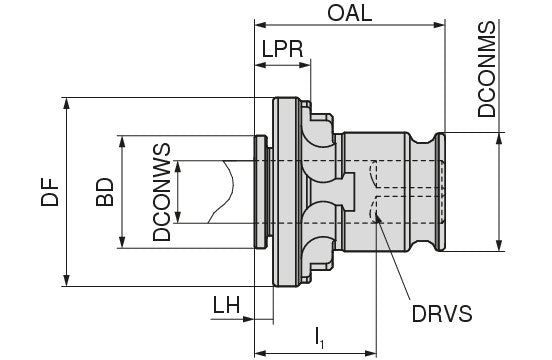

| Properties | ||
|---|---|---|
| Name | Ceratizit 31.GSE-IK.6,0.4,9 Quick Change Tap adapter, With Through Coolant 83614200 | |
| EDP # | 0831617 | |
| nominal size / SZID | 2.0000" | 50.800 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.2362" | 6.000 mm |
| Protruding length / LPR | 0.4331" | 11.000 mm |
| Mounting spigot diameter / DCONMS | 1.2205" | 31.000 mm |
| Shank - DIN 374 / DIN376 | M8 | |
| Shank - DIN 371 | M4,5 - M6 | |
| Overall length / OAL | 1.8110" | 46.000 mm |
| Head length / LH | 0.0984" | 2.500 mm |
| Drive size / DRVS | 0.1929" | 4.900 mm |
| Flange diameter / DF | 1.8228" | 46.300 mm |
| Neck diameter (BD) / BD | 1.0236" | 26.000 mm |
| L1 | 1.1811" | 30.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
