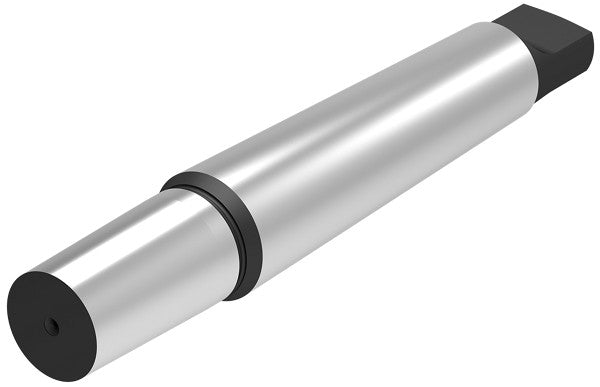

Ceratizit DIN238.MK2.BFA.B16 CoreLine - Drill Chuck Adapter 83642161 (0831648)
Ceratizit DIN238.MK2.BFA.B16 CoreLine - Drill Chuck Adapter 83642161 (0831648)
Couldn't load pickup availability
Ceratizit Article Number: 83642161
Ceratizit Material Number: 8364216100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DIN238.MK2.BFA.B16 CoreLine - Drill Chuck Adapter 83642161 | |
| EDP # | 0831648 | |
| Machine interface size | MK2 | |
| nominal size / SZID | B16 | |
| L3 | 2.9528" | 75.000 mm |
| Body length 1 / LB_1 | 0.9449" | 24.000 mm |
| Overall length / OAL | 4.3504" | 110.500 mm |
Background Information:
The Morse taper was developed by Stephen A. Morse circa 1865, and uses a taper of about 3 degrees included, varying slightly with size.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
