Ceratizit AS.M8X1.8.SW4 Stop Screw Type For Precision Collet Chuck 83950336 (0831728)
Ceratizit AS.M8X1.8.SW4 Stop Screw Type For Precision Collet Chuck 83950336 (0831728)
Couldn't load pickup availability
Ceratizit Article Number: 83950336
Ceratizit Material Number: 8395033600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

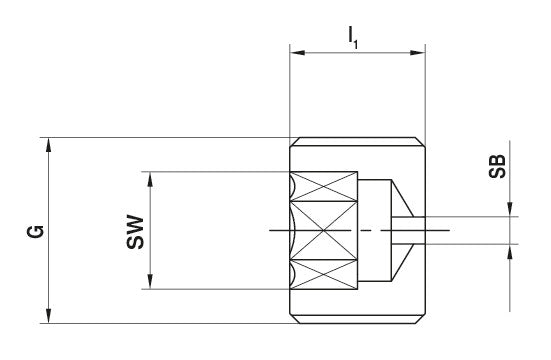

| Properties | ||
|---|---|---|
| Name | Ceratizit AS.M8X1.8.SW4 Stop Screw Type For Precision Collet Chuck 83950336 | |
| EDP # | 0831728 | |
| for collet | ER 11 | |
| Wrench size - range / DRVS | 0.1575" | 4.000 mm |
| Premachined slot width / PSW | 0.0630" | 1.600 mm |
| Overall length / OAL | 0.3150" | 8.000 mm |
| Thread designation outside / THOD | M8x1 | |
| Thread length / THLGTH | 0.3150" | 8.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
