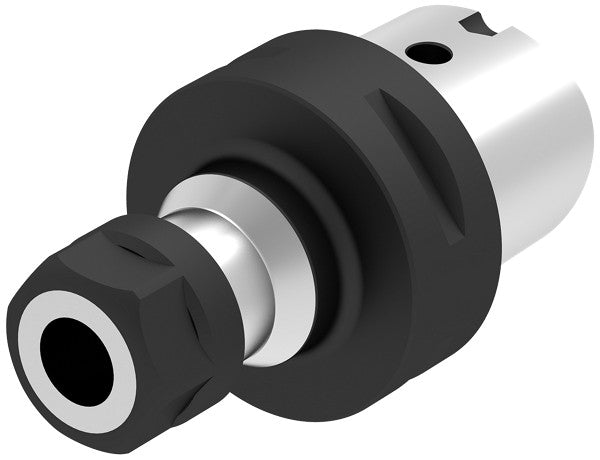

Ceratizit ISO26623-1.PSC50.SF.ER16.60.V.IK CoreLine Collet Chuck 84114504 (0831971)
Ceratizit ISO26623-1.PSC50.SF.ER16.60.V.IK CoreLine Collet Chuck 84114504 (0831971)
Couldn't load pickup availability
Ceratizit Article Number: 84114504
Ceratizit Material Number: 8411450400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

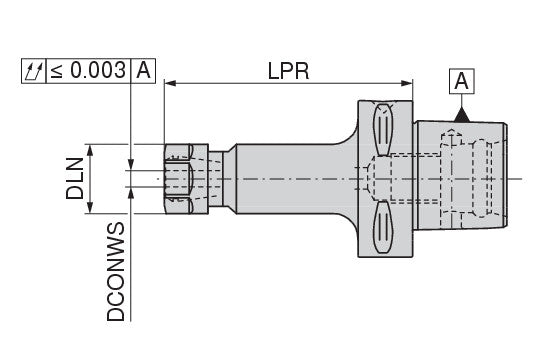

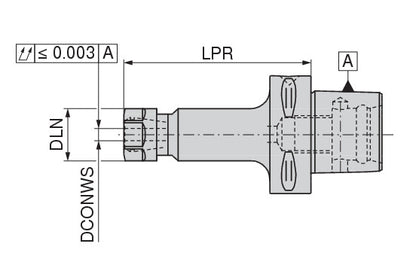

| Properties | ||
|---|---|---|
| Name | Ceratizit ISO26623-1.PSC50.SF.ER16.60.V.IK CoreLine Collet Chuck 84114504 | |
| EDP # | 0831971 | |
| Machine interface size | PSC 50 | |
| for collet | 426E (ER16) | |
| Clamping Ø, nominal, workpc. side - range / DCONWS | 1 - 10 | |
| Protruding length / LPR | 2.3622" | 60.000 mm |
| Diameter Lock Nut / DLN | 1.1024" | 28.000 mm |
| Neck diameter (BD) / BD | 1.1024" | 28.000 mm |
| Torque maximum / TQX | 56 Nm | |
| Mounting spigot diameter / DCONMS | 1.3780" | 35.000 mm |
| Balance quality | G 6.3 n<sub>max.</sub>15000 | |
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
The ER tool holder system was invented by Fritz Weber, founder of Rego-Fix, and released in 1972. The ER-type system was originally used as a broom head to handle interface! The R in "ER" stands for Rego-Fix, and represents the company's modification to common "E" collet design of the early 20th century. Specifically, the modification was adding a groove to the collet which keeps it captive in the nut while installing/removing; eliminating the problem of collets getting stuck in the holders. Upon patent expiry the system was standardized in 1993 under DIN 6499 and is today the most recognizable and commonly used collet system worldwide.
The classic ER interface, tried and true.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
