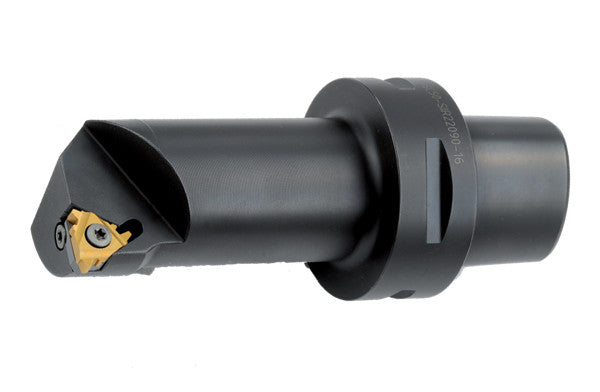

Ceratizit ISO26623-1.PSC50.SIL-15065-22.IK CoreLine Internal Threading Holder 84197520 (0832117)
Ceratizit ISO26623-1.PSC50.SIL-15065-22.IK CoreLine Internal Threading Holder 84197520 (0832117)
Couldn't load pickup availability
Ceratizit Article Number: 84197520
Ceratizit Material Number: 8419752000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ISO26623-1.PSC50.SIL-15065-22.IK CoreLine Internal Threading Holder 84197520 | |
| EDP # | 0832117 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Aluminum (Green) Stainless Steel (Yellow) Cast Iron (Red) Steel (Blue) Hard/Tool Steel (Grey) All Materials (White) | |
| Minimum bore diameter / DMIN | 0.9843" | 25.000 mm |
| Protruding length / LPR | 2.5591" | 65.000 mm |
| Functional width / WF | 0.5906" | 15.000 mm |
| Insert | 22 .. | |
| Head length / LH | 1.6142" | 41.000 mm |
| torque moment | 10 Nm | |
| Machine interface size | PSC 50 | |
| Version | Left | |
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
