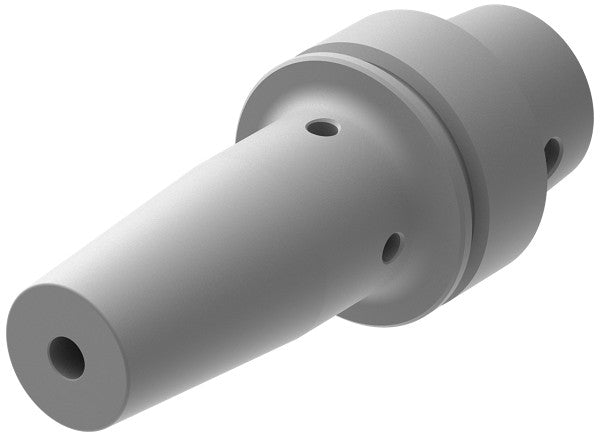

Ceratizit TG.ISO12164-E.AD40.SA.4,5°.8.80.F CoreLine Heat Shrink Adapter 4.5° 84308108 (0832326)
Ceratizit TG.ISO12164-E.AD40.SA.4,5°.8.80.F CoreLine Heat Shrink Adapter 4.5° 84308108 (0832326)
Couldn't load pickup availability
Ceratizit Article Number: 84308108
Ceratizit Material Number: 8430810800
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TG.ISO12164-E.AD40.SA.4,5°.8.80.F CoreLine Heat Shrink Adapter 4.5° 84308108 | |
| EDP # | 0832326 | |
| Product-Carbon-Footprint | A | |
| Machine interface size | HSK-E 40 | |

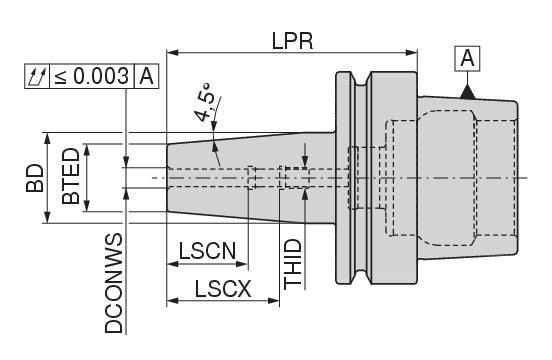

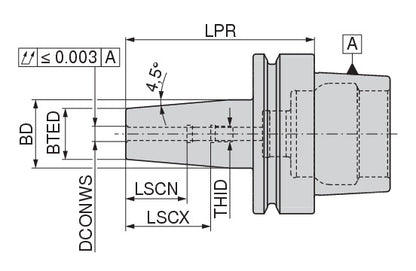

| Clamping diameter (DCONWS) / DCONWS | 0.3150" | 8.000 mm |
| Protruding length / LPR | 3.1496" | 80.000 mm |
| Body taper end diameter / BTED | 0.8268" | 21.000 mm |
| Neck diameter (BD) / BD | 1.0630" | 27.000 mm |
| Clamping length maximum machine side / LSCX | 1.4173" | 36.000 mm |
| Clamping length minimum machine side / LSCN | 1.0236" | 26.000 mm |
| Thread designation inside / THID | M6 | |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Balance quality | G 2.5 n<sub>max.</sub>25000 | |
Background Information:
The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for "Hohl Shaft Kegel" - "Hollow Shank Taper", and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.
The HSK-E form is designed for extreme speeds; with all sources of unbalance removed. This type still has a ring feature for automatic tool changing, but does not have any feature for integrating RFID chips
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
