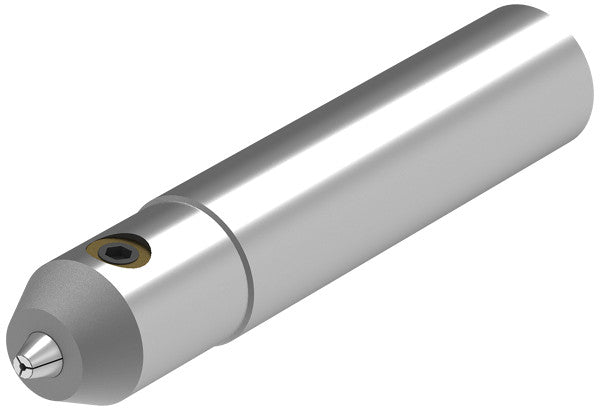

Ceratizit MICRO.DIN1835A.AD20.PSF.0,2-3,4.160.F CoreLine Micro-precision Collet Chuck 84315203 (0832347)
Ceratizit MICRO.DIN1835A.AD20.PSF.0,2-3,4.160.F CoreLine Micro-precision Collet Chuck 84315203 (0832347)
Couldn't load pickup availability
Ceratizit Article Number: 84315203
Ceratizit Material Number: 8431520300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MICRO.DIN1835A.AD20.PSF.0,2-3,4.160.F CoreLine Micro-precision Collet Chuck 84315203 | |
| EDP # | 0832347 | |
| Product-Carbon-Footprint | A | |

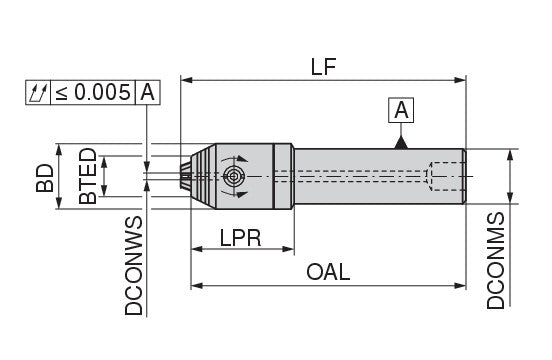

| Clamping Ø, nominal, workpc. side - range / DCONWS | 0.2 - 3.4 | |
| Protruding length / LPR | 1.1024" | 28.000 mm |
| Functional length / LF | 6.4173" | 163.000 mm |
| Neck diameter (BD) / BD | 0.7480" | 19.000 mm |
| Body taper end diameter / BTED | 0.4724" | 12.000 mm |
| Torque maximum / TQX | 2 Nm | |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Overall length / OAL | 6.2992" | 160.000 mm |
| Balance quality | G 2.5 n<sub>max.</sub>18000 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
