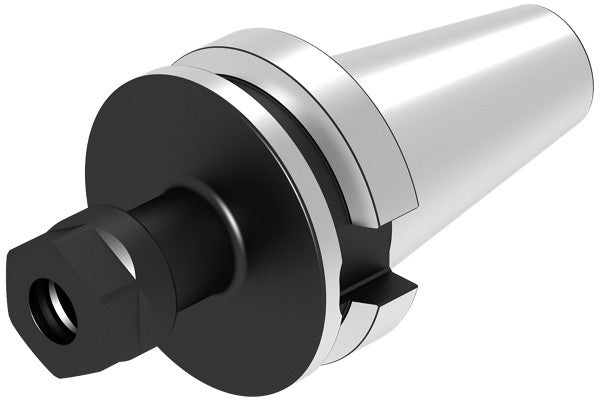

Ceratizit ^ISO7388-2.FC.AD40.SF.ER16.63.F CoreLine Collet Chuck 84557110 (0832623)
Ceratizit ^ISO7388-2.FC.AD40.SF.ER16.63.F CoreLine Collet Chuck 84557110 (0832623)
Couldn't load pickup availability
Ceratizit Article Number: 84557110
Ceratizit Material Number: 8455711000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ^ISO7388-2.FC.AD40.SF.ER16.63.F CoreLine Collet Chuck 84557110 | |
| EDP # | 0832623 | |
| Machine interface size | BT-FC 40 | |
| for collet | 426E (ER16) | |

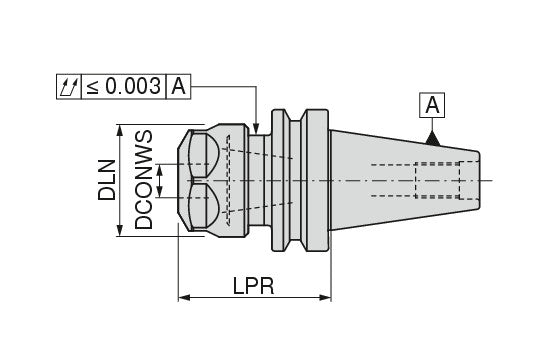

| Clamping Ø, nominal, workpc. side - range / DCONWS | 1 - 10 | |
| Protruding length / LPR | 2.4803" | 63.000 mm |
| Diameter Lock Nut / DLN | 1.1024" | 28.000 mm |
| Neck diameter (BD) / BD | 1.1024" | 28.000 mm |
| Torque maximum / TQX | 56 Nm | |
| Drive size / DRVS | 0.9843" | 25.000 mm |
| Balance quality | G 2.5 n<sub>max.</sub>20000 | |
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
The BT+ modification adds flange/face contact for improved rigidity and accuracy.
The ER tool holder system was invented by Fritz Weber, founder of Rego-Fix, and released in 1972. The ER-type system was originally used as a broom head to handle interface! The R in "ER" stands for Rego-Fix, and represents the company's modification to common "E" collet design of the early 20th century. Specifically, the modification was adding a groove to the collet which keeps it captive in the nut while installing/removing; eliminating the problem of collets getting stuck in the holders. Upon patent expiry the system was standardized in 1993 under DIN 6499 and is today the most recognizable and commonly used collet system worldwide.
The classic ER interface, tried and true.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
