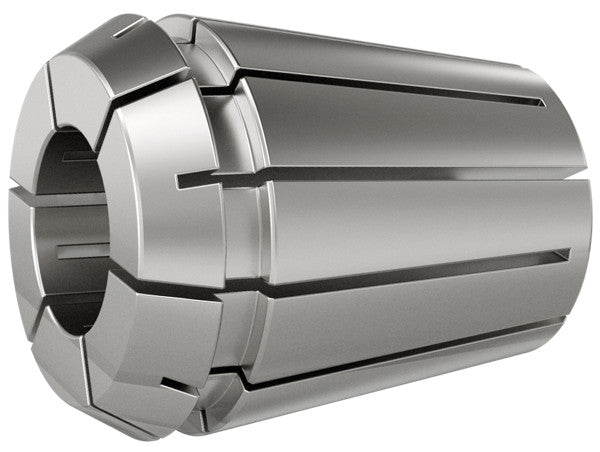

Ceratizit ISO15488-B.426E/ER16.SZ.1/4".C Precision Collet 8457825000 (0832659)
Ceratizit ISO15488-B.426E/ER16.SZ.1/4".C Precision Collet 8457825000 (0832659)
Couldn't load pickup availability
Ceratizit Article Number: 8457825000
Ceratizit Material Number: 8457825000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

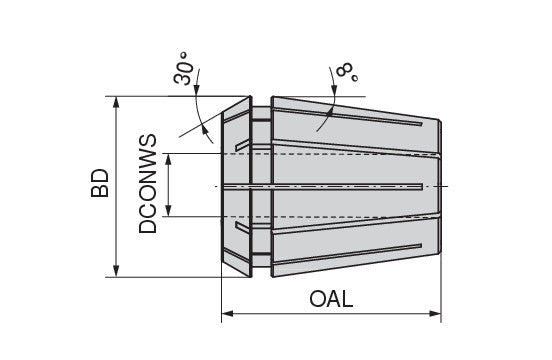

| Properties | ||
|---|---|---|
| Name | Ceratizit ISO15488-B.426E/ER16.SZ.1/4".C Precision Collet 8457825000 | |
| EDP # | 0832659 | |
| Clamping diameter (DCONWS) / DCONWS | 0.2500" | 6.350 mm |
| Connection diameter workpiece side / DCONWS | 1/4 | |
| Designation | 426 E / ER16 | |
| Neck diameter (BD) / BD | 0.6693" | 17.000 mm |
| Overall length / OAL | 1.0827" | 27.500 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
