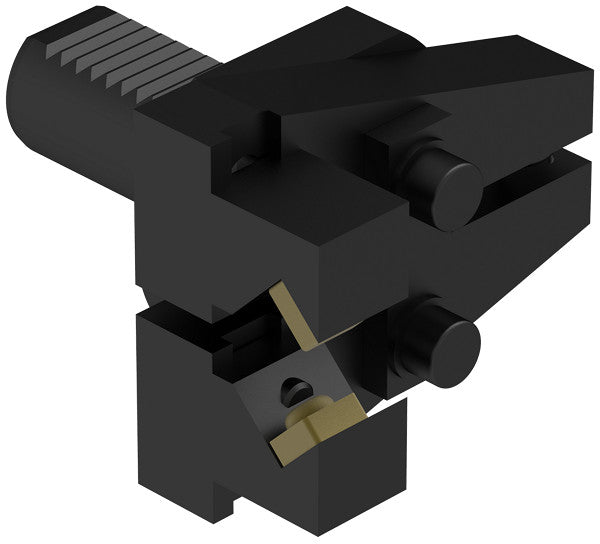

Ceratizit ISO10889.VDI30.SG.2-42.L CoreLine Bar Puller For Disc turrets, Radial 8030903000 (0833582)
Ceratizit ISO10889.VDI30.SG.2-42.L CoreLine Bar Puller For Disc turrets, Radial 8030903000 (0833582)
Couldn't load pickup availability
Ceratizit Article Number: 8030903000
Ceratizit Material Number: 8030903000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

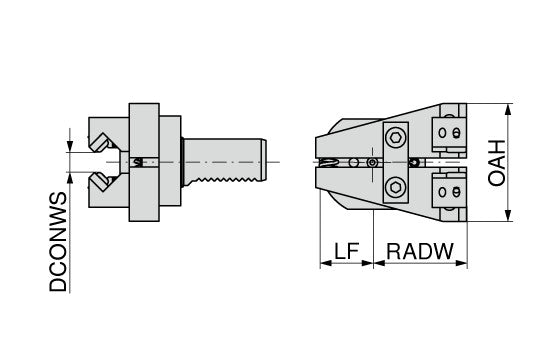

| Properties | ||
|---|---|---|
| Name | Ceratizit ISO10889.VDI30.SG.2-42.L CoreLine Bar Puller For Disc turrets, Radial 8030903000 | |
| EDP # | 0833582 | |
| Gripper accessories | 3 - 4 | |
| Mounting spigot diameter / DCONMS h6 | 1.1811" | 30.000 mm |
| H2 | 2.9921" | 76.000 mm |
| B4 | 1.4567" | 37.000 mm |
| Overall height / OAH | 4.1339" | 105.000 mm |
| Functional length / LF | 1.3386" | 34.000 mm |
| Radial width / RADW | 2.4016" | 61.000 mm |
| Functional width / WF | 2.1260" | 54.000 mm |
| Clamping Ø, nominal, workpc. side - range / DCONWS | 2 - 42 | |
| L3 | 0.9843" | 25.000 mm |
| Machine interface size | VDI 30 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
