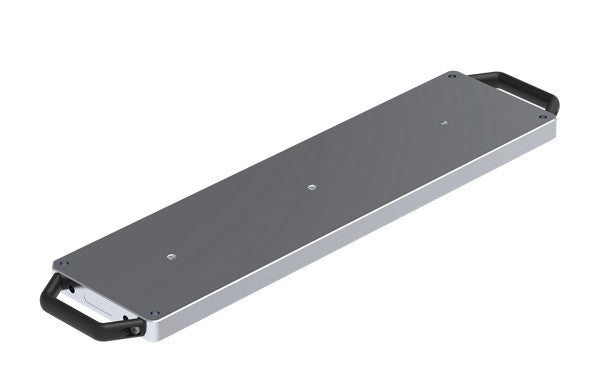

Ceratizit PNG.PAL.AL.599X159 CoreLine - Aluminum Clamping Pallet 80809087 (0833666)
Ceratizit PNG.PAL.AL.599X159 CoreLine - Aluminum Clamping Pallet 80809087 (0833666)
Couldn't load pickup availability
Ceratizit Article Number: 80809087
Ceratizit Material Number: 8080908700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

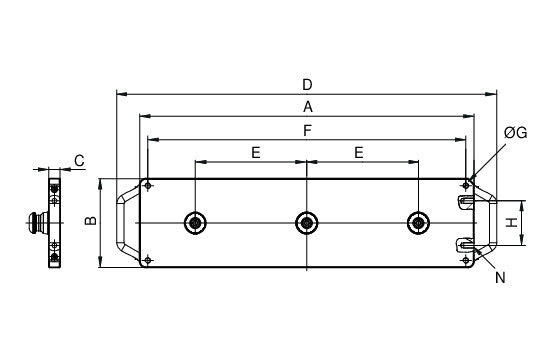

| Properties | ||
|---|---|---|
| Name | Ceratizit PNG.PAL.AL.599X159 CoreLine - Aluminum Clamping Pallet 80809087 | |
| EDP # | 0833666 | |
| A | 23.5827" | 599.000 mm |
| Size | 599x159 | |
| Shank width (B) | 6.2598" | 159.000 mm |
| C | 0.9843" | 25.000 mm |
| D | 26.8110" | 681.000 mm |
| E | 7.8740" | 200.000 mm |
| F | 22.4409" | 570.000 mm |
| Shank height (H) | 3.1496" | 80.000 mm |
| Number of teeth (N) | M10 | |
| G | M10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
