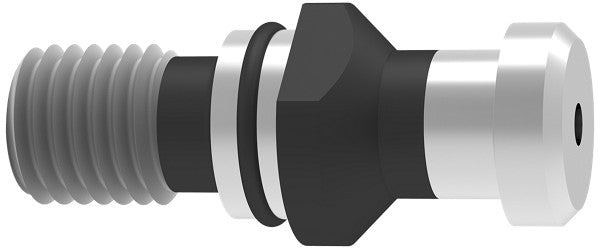

Ceratizit ISO7388-1.A.30.AB.15°.M12 Pull Studs For Adapters According To 82468030 (0834418)
Ceratizit ISO7388-1.A.30.AB.15°.M12 Pull Studs For Adapters According To 82468030 (0834418)
Couldn't load pickup availability
Ceratizit Article Number: 82468030
Ceratizit Material Number: 8246803000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

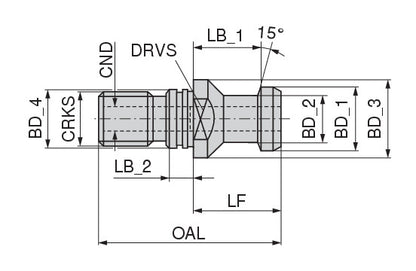

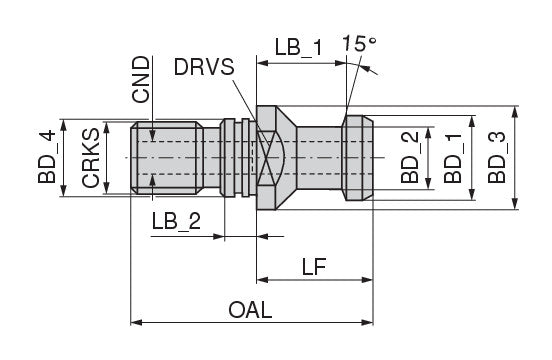

| Properties | ||
|---|---|---|
| Name | Ceratizit ISO7388-1.A.30.AB.15°.M12 Pull Studs For Adapters According To 82468030 | |
| EDP # | 0834418 | |
| Machine interface size | SK 30 | |
| Body diameter, 1st cutting step / BD_1 | 0.5118" | 13.000 mm |
| Body diameter, 2nd cutting step / BD_2 | 0.3543" | 9.000 mm |
| Body diameter, 3rd cutting step / BD_3 | 0.6693" | 17.000 mm |
| Body diameter, 4th cutting step / BD_4 | 0.5118" | 13.000 mm |
| Pull stud thread size / CRKS | M12 | |
| Overall length / OAL | 1.7323" | 44.000 mm |
| Functional length / LF | 0.9449" | 24.000 mm |
| Body length 1 / LB_1 | 0.7480" | 19.000 mm |
| Body length 2 / LB_2 | 0.1969" | 5.000 mm |
| Coolant entry diameter / CND | 0.1378" | 3.500 mm |
| Drive size / DRVS | 0.5512" | 14.000 mm |
| Torque maximum / TQX | 20 Nm | |
| Version | A | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
