Ceratizit HT-T.DIN1835A.32.HSF.20.19,5 CoreLine Hydraulic Chuck 8340232099 (0834579)
Ceratizit HT-T.DIN1835A.32.HSF.20.19,5 CoreLine Hydraulic Chuck 8340232099 (0834579)
Couldn't load pickup availability
Ceratizit Article Number: 8340232099
Ceratizit Material Number: 8340232099
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

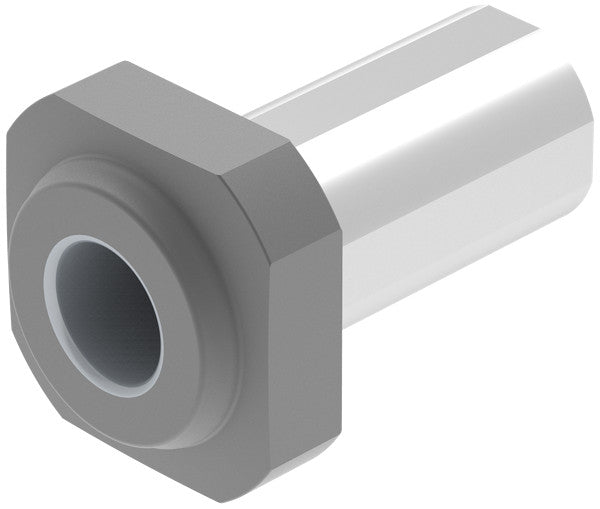

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

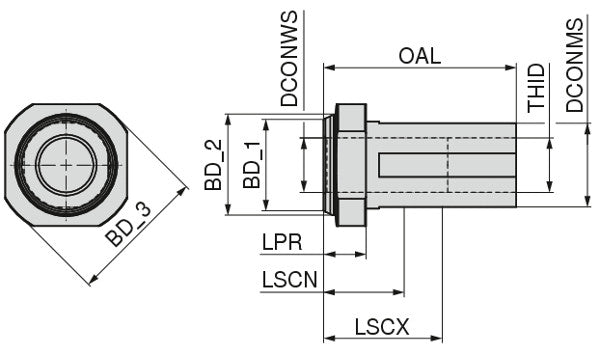

| Properties | ||
|---|---|---|
| Name | Ceratizit HT-T.DIN1835A.32.HSF.20.19,5 CoreLine Hydraulic Chuck 8340232099 | |
| EDP # | 0834579 | |
| Product-Carbon-Footprint | A | |
| Clamping diameter (DCONWS) / DCONWS | 0.7874" | 20.000 mm |
| Protruding length / LPR | 0.7677" | 19.500 mm |
| Body diameter, 1st cutting step / BD_1 | 1.4961" | 38.000 mm |
| Body diameter, 2nd cutting step / BD_2 | 1.6142" | 41.000 mm |
| Clamping length maximum machine side / LSCX | 2.0079" | 51.000 mm |
| Clamping length minimum machine side / LSCN | 1.6142" | 41.000 mm |
| Thread designation inside / THID | M22x1 | |
| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Overall width / OAW | 1.9685" | 50.000 mm |
| Overall length / OAL | 3.0906" | 78.500 mm |
| Shank length / LS | 2.3228" | 59.000 mm |
| Flange diameter / DF | 2.3228" | 59.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
