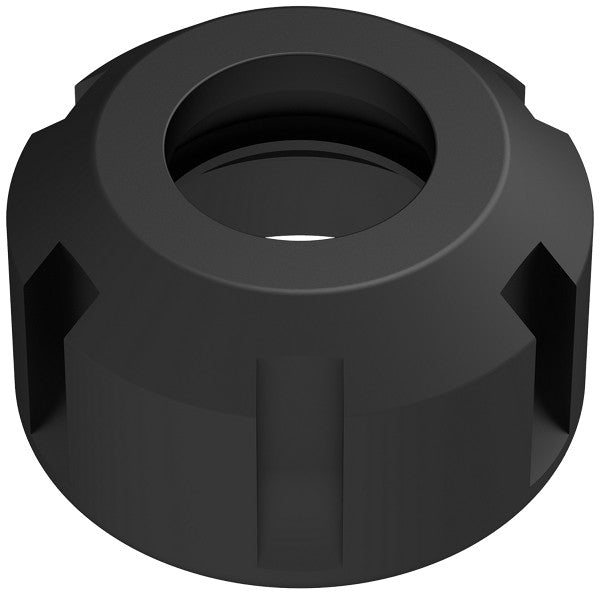

Ceratizit SM-DS.ER40.M50X1,5.30,7.IK Lock Nut 83950057 (0834785)
Ceratizit SM-DS.ER40.M50X1,5.30,7.IK Lock Nut 83950057 (0834785)
Couldn't load pickup availability
Ceratizit Article Number: 83950057
Ceratizit Material Number: 8395005700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SM-DS.ER40.M50X1,5.30,7.IK Lock Nut 83950057 | |
| EDP # | 0834785 | |
| Connection thread nominal size / THSZMS | M50x1,5 | |
| for collet | 472E (ER40) | |
| Torque maximum / TQX | 150 Nm | |
| Lock nut height / HLN | 1.2087" | 30.700 mm |
| Diameter Lock Nut / DLN | 2.4803" | 63.000 mm |
| Functional diameter / DFC | 1.5748" | 40.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
