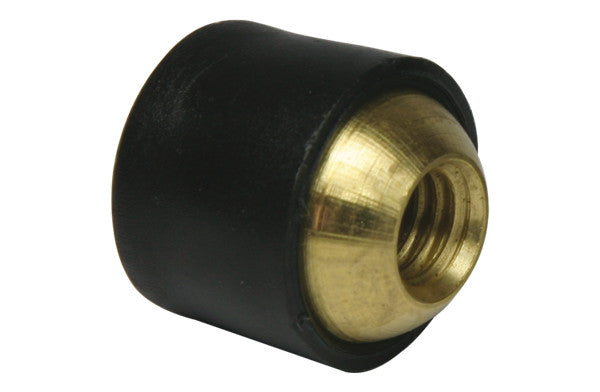

Ceratizit SDE.9,88X13.M4 Spray Nozzle Element 83950247 (0834799)
Ceratizit SDE.9,88X13.M4 Spray Nozzle Element 83950247 (0834799)
Couldn't load pickup availability
Ceratizit Article Number: 83950247
Ceratizit Material Number: 8395024700
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

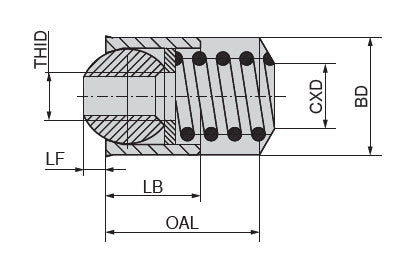

| Properties | ||
|---|---|---|
| Name | Ceratizit SDE.9,88X13.M4 Spray Nozzle Element 83950247 | |
| EDP # | 0834799 | |
| Coolant exit diameter / CXD | 0.2165" | 5.500 mm |
| Overall length / OAL | 0.5118" | 13.000 mm |
| Functional length / LF | 0.0866" | 2.200 mm |
| Body length / LB | 0.3150" | 8.000 mm |
| Neck diameter (BD) / BD | 0.3890" | 9.880 mm |
| Thread designation inside / THID | M4 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
