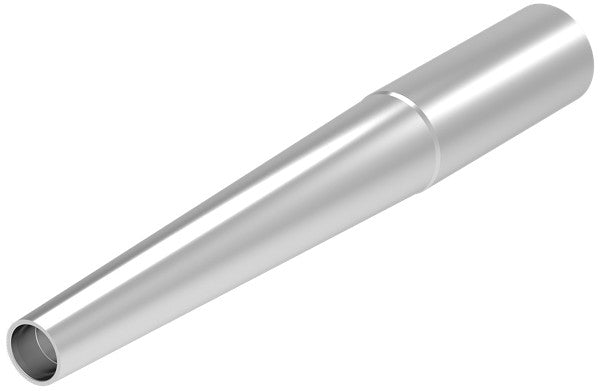

Ceratizit MUC-H.10.8.150.K87°.VHM.IK.KLG6 CoreLine Holders MultiChange 84010080 (0834864)
Ceratizit MUC-H.10.8.150.K87°.VHM.IK.KLG6 CoreLine Holders MultiChange 84010080 (0834864)
Couldn't load pickup availability
Ceratizit Article Number: 84010080
Ceratizit Material Number: 8401008000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MUC-H.10.8.150.K87°.VHM.IK.KLG6 CoreLine Holders MultiChange 84010080 | |
| EDP # | 0834864 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Product-Carbon-Footprint | D | |
| Body length / LB | 4.2520" | 108.000 mm |
| nominal size / SZID | 6.0000" | 152.400 mm |
| Mounting spigot diameter / DCONMS | 0.3937" | 10.000 mm |
| Overall length / OAL | 5.9055" | 150.000 mm |
| Body diameter, 2nd cutting step / BD_2 | 0.3701" | 9.400 mm |
| Body diameter, 1st cutting step / BD_1 | 0.3071" | 7.800 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
