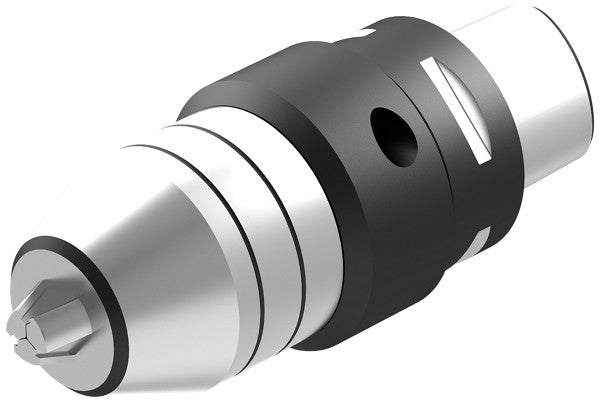

Ceratizit ISO26623-1.PSC50.BF.0,5-13.F CoreLine Short Drill Chuck NC 2010 8411101394 (0834883)
Ceratizit ISO26623-1.PSC50.BF.0,5-13.F CoreLine Short Drill Chuck NC 2010 8411101394 (0834883)
Couldn't load pickup availability
Ceratizit Article Number: 8411101394
Ceratizit Material Number: 8411101394
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ISO26623-1.PSC50.BF.0,5-13.F CoreLine Short Drill Chuck NC 2010 8411101394 | |
| EDP # | 0834883 | |
| Machine interface size | PSC 50 | |

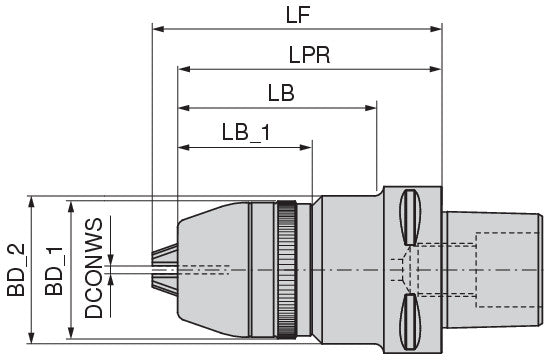

| Clamping Ø, nominal, workpc. side - range / DCONWS | 0.5 - 13 | |
| Protruding length / LPR | 3.9370" | 100.000 mm |
| Body diameter, 1st cutting step / BD_1 | 1.9094" | 48.500 mm |
| Body diameter, 2nd cutting step / BD_2 | 2.2047" | 56.000 mm |
| Body length 1 / LB_1 | 2.0039" | 50.900 mm |
| Body length / LB | 3.0315" | 77.000 mm |
| Functional length / LF | 4.2913" | 109.000 mm |
| Overall length / OAL | 5.1181" | 130.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.0197" | 0.500 mm |
| Balance quality | G 2.5 n<sub>max.</sub>10000 | |
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
