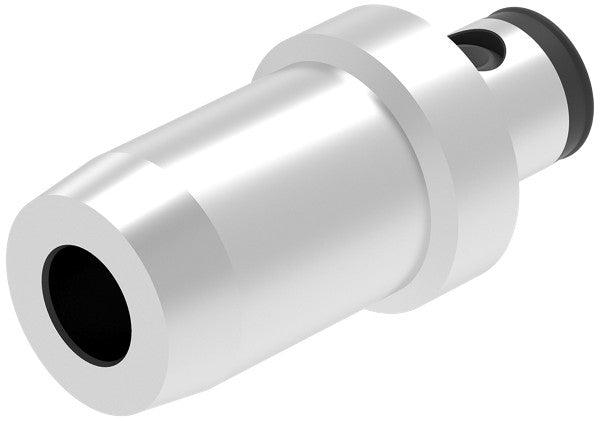

Ceratizit HT-F.ABS50.HSF.14.65 HyPower Hydraulic Chuck Fit 8425301497 (0834928)
Ceratizit HT-F.ABS50.HSF.14.65 HyPower Hydraulic Chuck Fit 8425301497 (0834928)
Couldn't load pickup availability
Ceratizit Article Number: 8425301497
Ceratizit Material Number: 8425301497
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

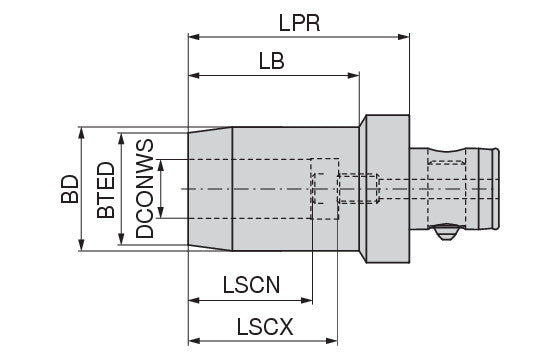

| Properties | ||
|---|---|---|
| Name | Ceratizit HT-F.ABS50.HSF.14.65 HyPower Hydraulic Chuck Fit 8425301497 | |
| EDP # | 0834928 | |
| Product-Carbon-Footprint | A | |
| Machine interface size | ABS 50 | |
| Clamping diameter (DCONWS) / DCONWS | 0.5512" | 14.000 mm |
| Protruding length / LPR | 2.5591" | 65.000 mm |
| Body taper end diameter / BTED | 1.1811" | 30.000 mm |
| Neck diameter (BD) / BD | 1.3386" | 34.000 mm |
| Clamping length maximum machine side / LSCX | 1.8110" | 46.000 mm |
| Clamping length minimum machine side / LSCN | 1.4173" | 36.000 mm |
| Body length / LB | 1.8110" | 46.000 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Overall length / OAL | 3.7795" | 96.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
Background Information:
CERATIZIT’s (formerly Komet’s) patented modular ABS adapter system gives users exceptional flexibility together with fast tool changes. The system can be used with all common machine interfaces. An adapter with ABS interface must be built directly into the machine spindle. After that, users can choose from a huge range of adapters: from hydraulic chucks, short drill chucks and collet chucks through to damping elements, extensions and much more - the right, customised and modular cutting tool can be created for every requirement. Once the system with the specific interfaces has been implemented in production, the modular tools can be flexibly used on different machines. Tool changes are made easy with just a few simple steps. Besides this, the system offers exceptional clamping force and precision.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
