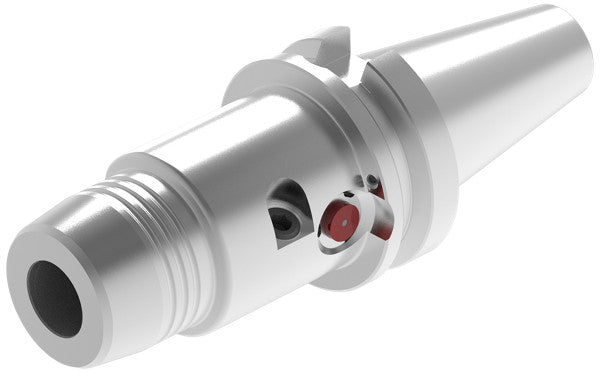

Ceratizit ITENDO2.ISO7388-2.AD30.HSF.20.90.F iTENDO² 8425612070 (0835029)
Ceratizit ITENDO2.ISO7388-2.AD30.HSF.20.90.F iTENDO² 8425612070 (0835029)
Couldn't load pickup availability
Ceratizit Article Number: 8425612070
Ceratizit Material Number: 8425612070
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

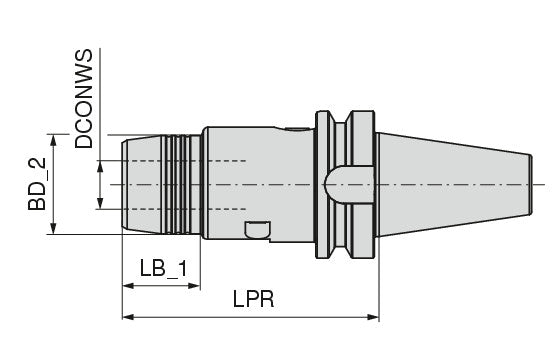

| Properties | ||
|---|---|---|
| Name | Ceratizit ITENDO2.ISO7388-2.AD30.HSF.20.90.F iTENDO² 8425612070 | |
| EDP # | 0835029 | |
| Machine interface size | BT 30 | |
| Clamping diameter (DCONWS) / DCONWS | 0.7874" | 20.000 mm |
| Protruding length / LPR | 3.5433" | 90.000 mm |
| Body diameter, 1st cutting step / BD_1 | 1.4823" | 37.650 mm |
| Body diameter, 2nd cutting step / BD_2 | 1.6555" | 42.050 mm |
| Body length 1 / LB_1 | 1.9567" | 49.700 mm |
| Body length 2 / LB_2 | 2.6772" | 68.000 mm |
| Balance quality | G 2.5 n<sub>max.</sub>25000 | |
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
