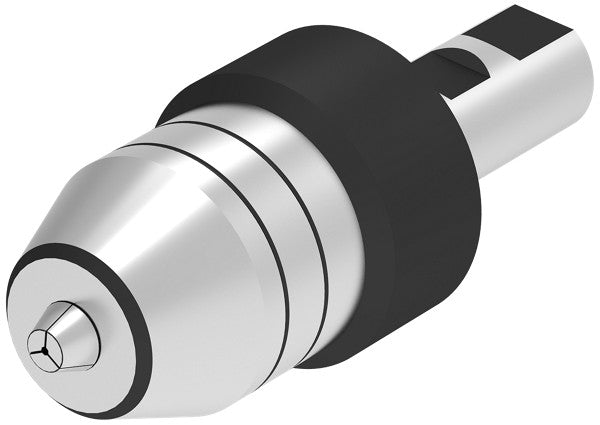

Ceratizit NC2010.DIN1835.B.25.BF.0,5-13.80 CoreLine Short Drill Chuck 84311213 (0835078)
Ceratizit NC2010.DIN1835.B.25.BF.0,5-13.80 CoreLine Short Drill Chuck 84311213 (0835078)
Couldn't load pickup availability
Ceratizit Article Number: 84311213
Ceratizit Material Number: 8431121300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit NC2010.DIN1835.B.25.BF.0,5-13.80 CoreLine Short Drill Chuck 84311213 | |
| EDP # | 0835078 | |
| Clamping Ø, nominal, workpc. side - range / DCONWS | 0.5 - 13 | |
| Protruding length / LPR | 3.1496" | 80.000 mm |
| Body length / LB | 2.0039" | 50.900 mm |
| Functional length / LF | 3.5039" | 89.000 mm |
| Neck diameter (BD) / BD | 1.9094" | 48.500 mm |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Balance quality | G 6.3 n<sub>max.</sub>10000 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
