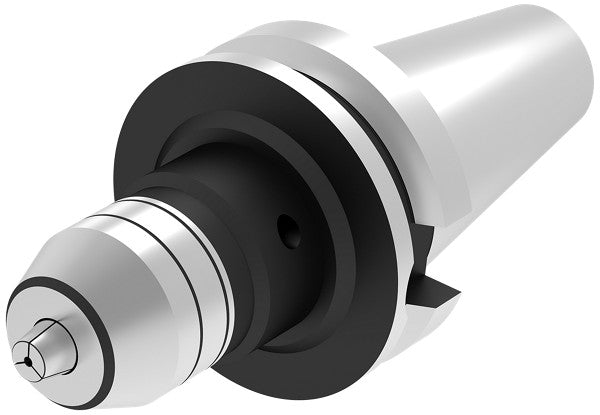

Ceratizit NC2010.ISO7388-2.AD50.BF.2,5-16.120 CoreLine Short Drill Chuck 84510516 (0835110)
Ceratizit NC2010.ISO7388-2.AD50.BF.2,5-16.120 CoreLine Short Drill Chuck 84510516 (0835110)
Couldn't load pickup availability
Ceratizit Article Number: 84510516
Ceratizit Material Number: 8451051600
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit NC2010.ISO7388-2.AD50.BF.2,5-16.120 CoreLine Short Drill Chuck 84510516 | |
| EDP # | 0835110 | |
| Machine interface size | BT 50 | |

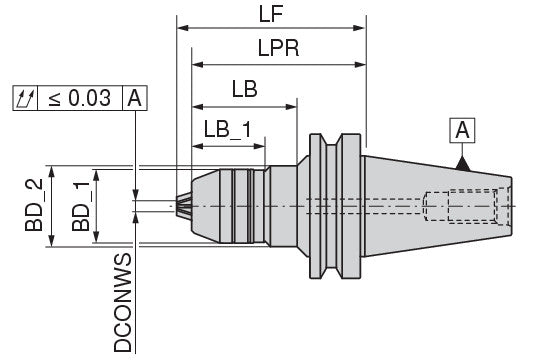

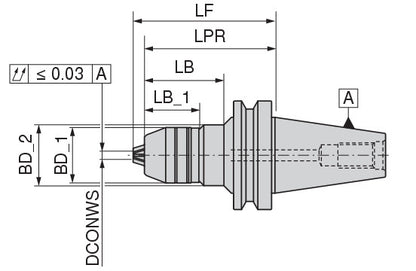

| Clamping Ø, nominal, workpc. side - range / DCONWS | 2.5 - 16 | |
| Protruding length / LPR | 4.7244" | 120.000 mm |
| Body diameter, 1st cutting step / BD_1 | 2.0079" | 51.000 mm |
| Body diameter, 2nd cutting step / BD_2 | 2.2047" | 56.000 mm |
| Body length 1 / LB_1 | 2.0039" | 50.900 mm |
| Body length / LB | 2.8740" | 73.000 mm |
| Functional length / LF | 5.1378" | 130.500 mm |
| Balance quality | G 6.3 n<sub>max.</sub>10000 | |
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
