Ceratizit ^ISO26623-1.PSC50.V.100 CoreLine Extension, Axial Clamping 84620502 (0835124)
Ceratizit ^ISO26623-1.PSC50.V.100 CoreLine Extension, Axial Clamping 84620502 (0835124)
Couldn't load pickup availability
Ceratizit Article Number: 84620502
Ceratizit Material Number: 8462050200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

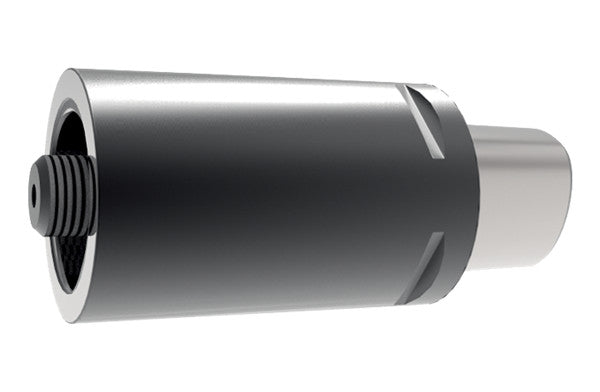

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ^ISO26623-1.PSC50.V.100 CoreLine Extension, Axial Clamping 84620502 | |
| EDP # | 0835124 | |
| Machine interface size | PSC 50 | |
| Cone clamping size | PSC 50 | |
| Clamping diameter (DCONWS) / DCONWS | 1.3780" | 35.000 mm |
| Neck diameter (BD) / BD | 1.9685" | 50.000 mm |
| Mounting spigot diameter / DCONMS | 1.3780" | 35.000 mm |
| Overall length / OAL | 5.1181" | 130.000 mm |
| Clamping length machine side / LSC | 1.1811" | 30.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
