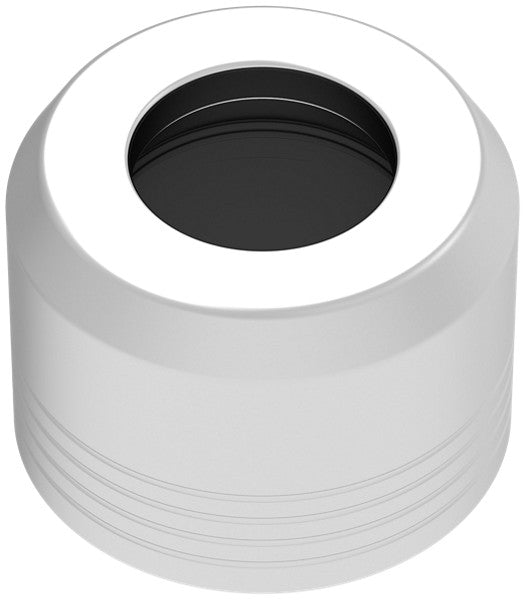

Ceratizit SM-DS.CP.ER25.IK CoreLine Lock Nut For Precision Collet Chucks Centro-P 84950013 (0835168)
Ceratizit SM-DS.CP.ER25.IK CoreLine Lock Nut For Precision Collet Chucks Centro-P 84950013 (0835168)
Couldn't load pickup availability
Ceratizit Article Number: 84950013
Ceratizit Material Number: 8495001300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SM-DS.CP.ER25.IK CoreLine Lock Nut For Precision Collet Chucks Centro-P 84950013 | |
| EDP # | 0835168 | |
| for collet | 430E (ER25) | |
| Torque maximum / TQX | 90 Nm | |
| Lock nut height / HLN | 1.1378" | 28.900 mm |
| Diameter Lock Nut / DLN | 1.5748" | 40.000 mm |
| Gauge diameter distance / LDG | 0.4591" | 11.660 mm |
| Functional diameter / DFC | 0.9843" | 25.000 mm |
| Clamping Ø, nominal, workpc. side - range / DCONWS | 2 - 16 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
