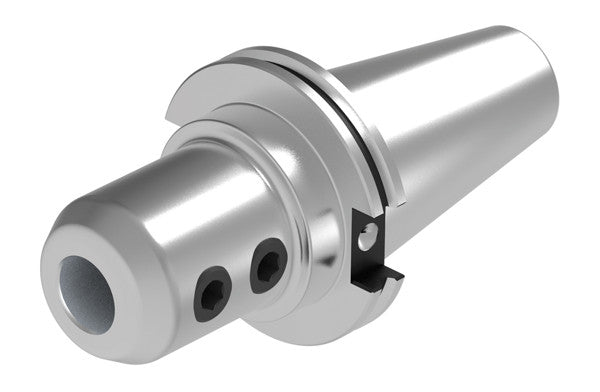

Ceratizit CAT-AD40-WE0563-3000 Cylindrical Shank Adapter Weldon 8700011452 (0835217)
Ceratizit CAT-AD40-WE0563-3000 Cylindrical Shank Adapter Weldon 8700011452 (0835217)
Couldn't load pickup availability
Ceratizit Article Number: 8700011452
Ceratizit Material Number: 8700011452
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CAT-AD40-WE0563-3000 Cylindrical Shank Adapter Weldon 8700011452 | |
| EDP # | 0835217 | |
| Machine interface size | CAT 40 | |

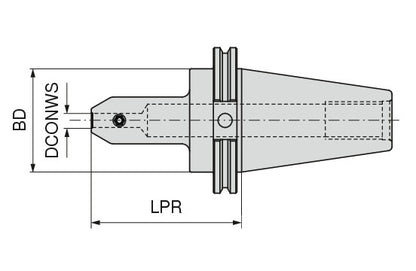

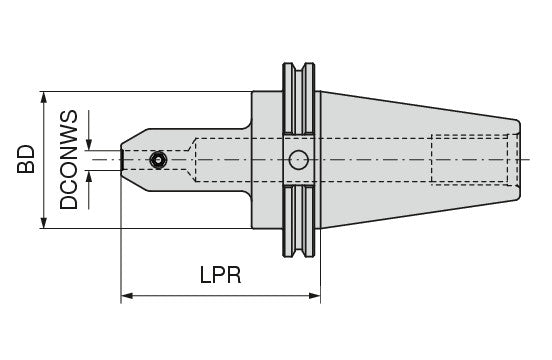

| Clamping diameter (DCONWS) / DCONWS H6 | 0.5625" | 14.290 mm |
| Protruding length / LPR | 3.0000" | 76.200 mm |
| Neck diameter (BD) / BD | 1.6200" | 41.150 mm |
| Body diameter, 1st cutting step / BD_1 | 1.6200" | 41.150 mm |
| Body taper end diameter / BTED | 1.1654" | 29.600 mm |
| Body diameter, 2nd cutting step / BD_2 | 1.7500" | 44.450 mm |
| Body half taper angle / BHTA | 30 ° | |
| Body length 1 / LB_1 | 1.6201" | 41.150 mm |
| Balance quality | G 2.5 n<sub>max.</sub>25000 | |
Background Information:
The CAT system utilizes a proven 'fast taper' (7:24) self-releasing format and is common among American machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
