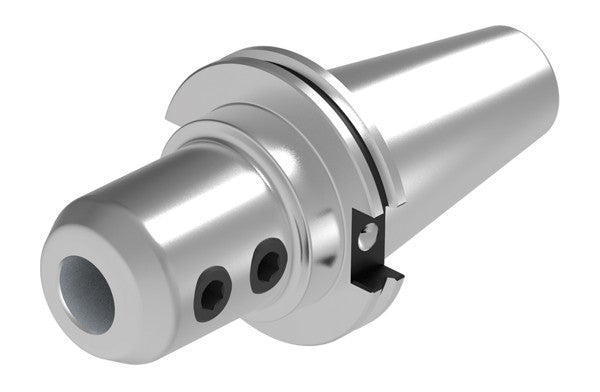

Ceratizit CAT-AD50-WE0625-4000 Cylindrical Shank Adapter Weldon 8700021553 (0835225)
Ceratizit CAT-AD50-WE0625-4000 Cylindrical Shank Adapter Weldon 8700021553 (0835225)
Couldn't load pickup availability
Ceratizit Article Number: 8700021553
Ceratizit Material Number: 8700021553
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CAT-AD50-WE0625-4000 Cylindrical Shank Adapter Weldon 8700021553 | |
| EDP # | 0835225 | |
| Machine interface size | CAT 50 | |

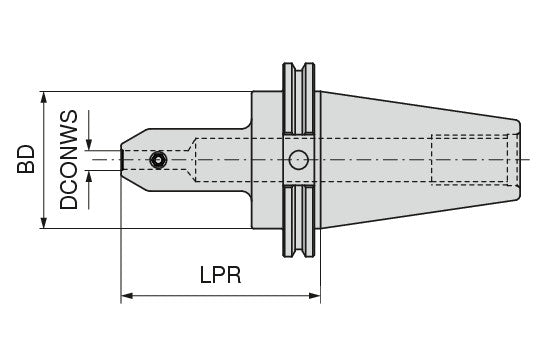

| Clamping diameter (DCONWS) / DCONWS H6 | 0.6250" | 15.880 mm |
| Protruding length / LPR | 4.0000" | 101.600 mm |
| Neck diameter (BD) / BD | 1.6200" | 41.150 mm |
| Body diameter, 1st cutting step / BD_1 | 1.6200" | 41.150 mm |
| Body taper end diameter / BTED | 1.1654" | 29.600 mm |
| Body diameter, 2nd cutting step / BD_2 | 2.7500" | 69.850 mm |
| Body half taper angle / BHTA | 30 ° | |
| Body length 1 / LB_1 | 2.6189" | 66.520 mm |
| Balance quality | G 2.5 n<sub>max.</sub>25000 | |
Background Information:
The CAT system utilizes a proven 'fast taper' (7:24) self-releasing format and is common among American machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
