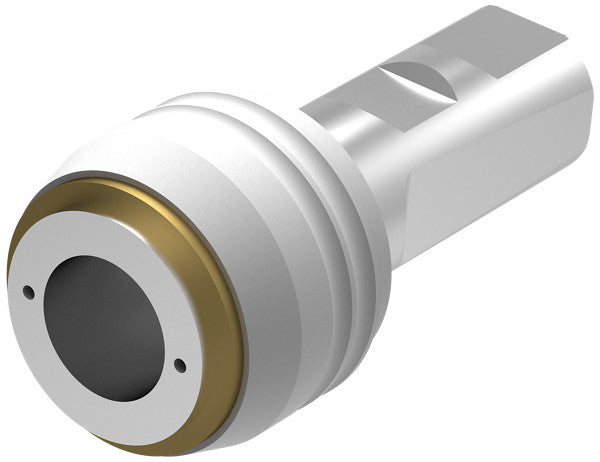

Ceratizit DIN1835.B+E.32.SGSF.M6-M20.56 CoreLine Synchro Quick Change Tapping Chuck w/ Minimum Len Comp 83641020 (0835699)
Ceratizit DIN1835.B+E.32.SGSF.M6-M20.56 CoreLine Synchro Quick Change Tapping Chuck w/ Minimum Len Comp 83641020 (0835699)
Couldn't load pickup availability
Ceratizit Article Number: 83641020
Ceratizit Material Number: 8364102000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

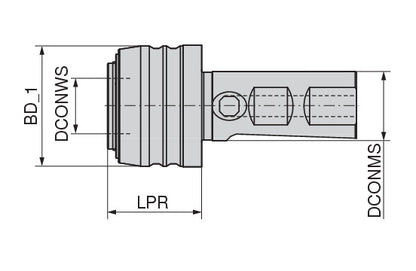

| Properties | ||
|---|---|---|
| Name | Ceratizit DIN1835.B+E.32.SGSF.M6-M20.56 CoreLine Synchro Quick Change Tapping Chuck w/ Minimum Len Comp 83641020 | |
| EDP # | 0835699 | |
| cutting range | M6 - M20 | |
| nominal size / SZID | 2.0000" | 50.800 mm |
| Protruding length / LPR | 2.2047" | 56.000 mm |
| Body diameter, 1st cutting step / BD_1 | 2.3622" | 60.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.2598" | 32.000 mm |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| LZD± | 1.0 / 0.2 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
