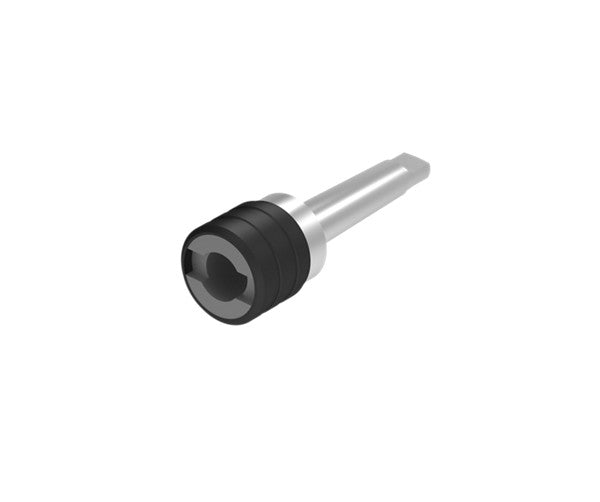

Ceratizit DIN228B.MK2.GSF.M3-M12.46 CoreLine Quick Change Tapping Chuck w/ Len Comp 83646212 (0835700)
Ceratizit DIN228B.MK2.GSF.M3-M12.46 CoreLine Quick Change Tapping Chuck w/ Len Comp 83646212 (0835700)
Couldn't load pickup availability
Ceratizit Article Number: 83646212
Ceratizit Material Number: 8364621200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DIN228B.MK2.GSF.M3-M12.46 CoreLine Quick Change Tapping Chuck w/ Len Comp 83646212 | |
| EDP # | 0835700 | |
| Machine interface size | MK 2 | |
| cutting range | M3 - M12 | |
| nominal size / SZID | 1.0000" | 25.400 mm |
| Protruding length / LPR | 1.8110" | 46.000 mm |
| Body diameter, 1st cutting step / BD_1 | 1.4961" | 38.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.7480" | 19.000 mm |
| LZD± | 0.3543" | 9.000 mm |
Background Information:
The Morse taper was developed by Stephen A. Morse circa 1865, and uses a taper of about 3 degrees included, varying slightly with size.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
