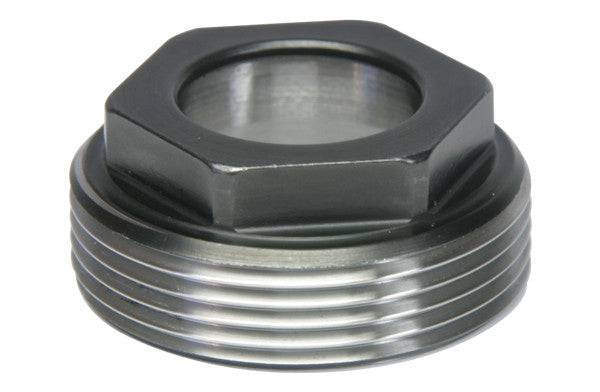

Ceratizit SM.ER25.M32X1,5.SW24 Lock Nut w/ External Thread Shape For Sealing Discs w/ Internal Cooling 8395045800 (0835877)
Ceratizit SM.ER25.M32X1,5.SW24 Lock Nut w/ External Thread Shape For Sealing Discs w/ Internal Cooling 8395045800 (0835877)
Couldn't load pickup availability
Ceratizit Article Number: 8395045800
Ceratizit Material Number: 8395045800
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit SM.ER25.M32X1,5.SW24 Lock Nut w/ External Thread Shape For Sealing Discs w/ Internal Cooling 8395045800 | |
| EDP # | 0835877 | |
| for collet | ER 25 | |
| Wrench size - range / DRVS | 0.9449" | 24.000 mm |
| Lock nut height / HLN | 0.5512" | 14.000 mm |
| Shank width (B) | 0.7815" | 19.850 mm |
| Fixing hole diameter / D1 | 0.6535" | 16.600 mm |
| Thread designation outside / THOD | M32x1,5 | |
| L2 | 0.2047" | 5.200 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
