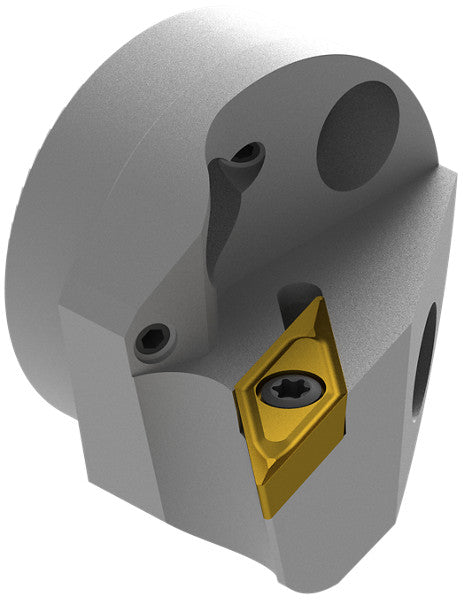

Ceratizit WK32.WSK.SVQCL.32-16 CoreLine 107.5° Exchangeable Cutting Head w/ Screw Clamping MaxiChange 8417813200 (0835961)
Ceratizit WK32.WSK.SVQCL.32-16 CoreLine 107.5° Exchangeable Cutting Head w/ Screw Clamping MaxiChange 8417813200 (0835961)
Couldn't load pickup availability
Ceratizit Article Number: 8417813200
Ceratizit Material Number: 8417813200
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WK32.WSK.SVQCL.32-16 CoreLine 107.5° Exchangeable Cutting Head w/ Screw Clamping MaxiChange 8417813200 | |
| EDP # | 0835961 | |
| Workpiece Material(s) | Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) All Materials (White) | |
| Product System | MaxiChange | |
| Protruding length / LPR | 1.3780" | 35.000 mm |
| Functional width / WF | 0.8661" | 22.000 mm |
| Minimum bore diameter / DMIN | 1.5748" | 40.000 mm |
| Functional length / LF | 1.3780" | 35.000 mm |
| Insert | VC.. 1604 | |
| torque moment | 3 Nm | |
| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Head length / LH | 0.8268" | 21.000 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
