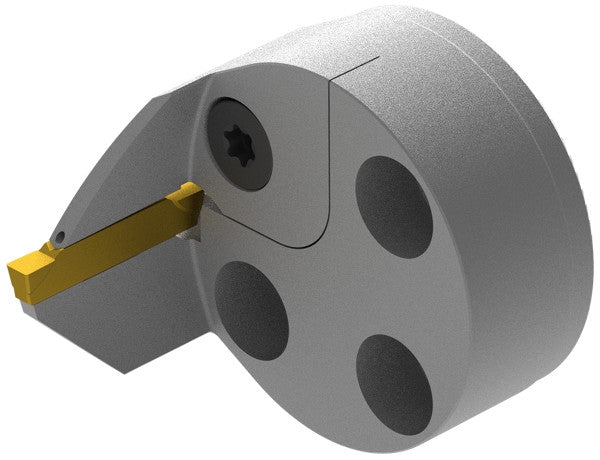

Ceratizit WK40L.20-DC-GX24-S3.D70-100 CoreLine Axial Exchangeable Grooving Head GX24-DC MaxiChange 8418634100 (0835970)
Ceratizit WK40L.20-DC-GX24-S3.D70-100 CoreLine Axial Exchangeable Grooving Head GX24-DC MaxiChange 8418634100 (0835970)
Couldn't load pickup availability
Ceratizit Article Number: 8418634100
Ceratizit Material Number: 8418634100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WK40L.20-DC-GX24-S3.D70-100 CoreLine Axial Exchangeable Grooving Head GX24-DC MaxiChange 8418634100 | |
| EDP # | 0835970 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) Stainless Steel (Yellow) All Materials (White) | |
| Cutting width / CW | 0.1181" | 3.000 mm |
| Functional width / WF | 0.8268" | 21.000 mm |
| Functional length / LF | 1.5748" | 40.000 mm |
| Cutting depth maximum / CDX | 0.7874" | 20.000 mm |
| Axial groove inside diameter minimum / DAXIN | 2.7559" | 70.000 mm |
| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |
| Axial groove outside diameter maximum / DAXX | 3.9370" | 100.000 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
