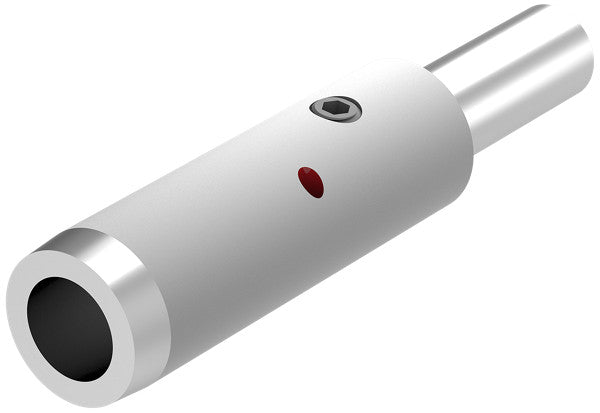

Ceratizit DIN1835A.20.V.150.20.F CoreLine - Hydraulic Expansion Extension Especially For Hydraulic Chucks 84313120 (0836010)
Ceratizit DIN1835A.20.V.150.20.F CoreLine - Hydraulic Expansion Extension Especially For Hydraulic Chucks 84313120 (0836010)
Couldn't load pickup availability
Ceratizit Article Number: 84313120
Ceratizit Material Number: 8431312000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DIN1835A.20.V.150.20.F CoreLine - Hydraulic Expansion Extension Especially For Hydraulic Chucks 84313120 | |
| EDP # | 0836010 | |
| Product-Carbon-Footprint | A | |
| Clamping diameter (DCONWS) / DCONWS | 0.7874" | 20.000 mm |
| Protruding length / LPR | 3.9370" | 100.000 mm |
| Neck diameter (BD) / BD | 1.2402" | 31.500 mm |
| Clamping length maximum machine side / LSCX | 2.0079" | 51.000 mm |
| Clamping length minimum machine side / LSCN | 1.6142" | 41.000 mm |
| Thread designation inside / THID | M10x1 | |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Overall length / OAL | 5.9055" | 150.000 mm |
| Balance quality | G 2.5 n<sub>max.</sub>25000 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
