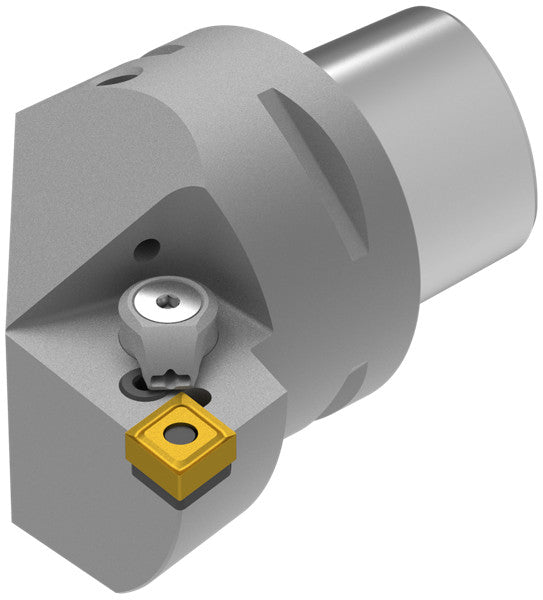

Ceratizit ISO26623-1.PSC50.KH.PCLNR-65060-12 CoreLine 95° Tool Holder w/ Lever Clamping 8465601294 (0836350)
Ceratizit ISO26623-1.PSC50.KH.PCLNR-65060-12 CoreLine 95° Tool Holder w/ Lever Clamping 8465601294 (0836350)
Couldn't load pickup availability
Ceratizit Article Number: 8465601294
Ceratizit Material Number: 8465601294
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

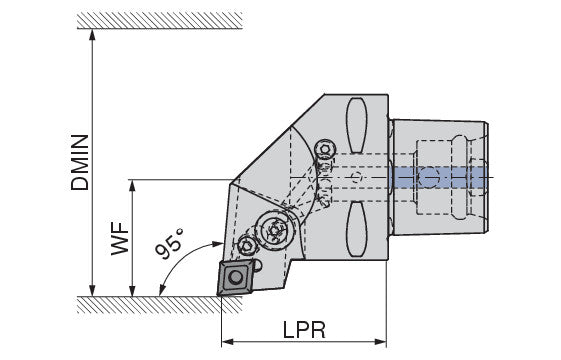

| Properties | ||
|---|---|---|
| Name | Ceratizit ISO26623-1.PSC50.KH.PCLNR-65060-12 CoreLine 95° Tool Holder w/ Lever Clamping 8465601294 | |
| EDP # | 0836350 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) | |
| Minimum bore diameter / DMIN | 2.5591" | 65.000 mm |
| Protruding length / LPR | 2.3622" | 60.000 mm |
| Functional width / WF | 1.3780" | 35.000 mm |
| Insert | CN.. 1204 | |
| torque moment | 5 Nm | |
| Machine interface size | PSC 50 | |
| Version | Right | |
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
