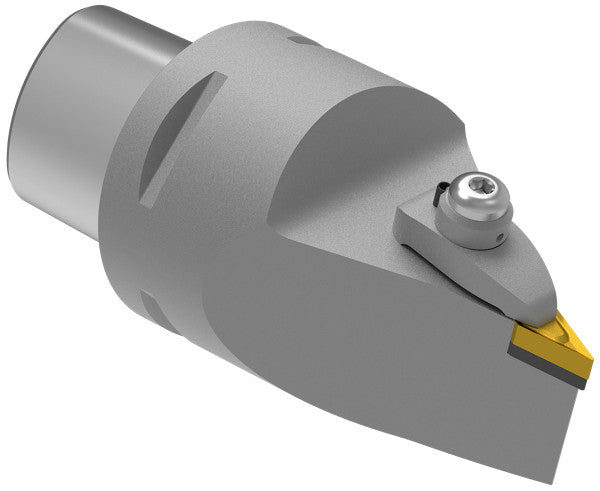

Ceratizit ISO26623-1.PSC63.KH.DVVNN-0100-16 CoreLine 72.5° Tool Holder w/ Top Clamping 8467901693 (0836412)
Ceratizit ISO26623-1.PSC63.KH.DVVNN-0100-16 CoreLine 72.5° Tool Holder w/ Top Clamping 8467901693 (0836412)
Couldn't load pickup availability
Ceratizit Article Number: 8467901693
Ceratizit Material Number: 8467901693
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit ISO26623-1.PSC63.KH.DVVNN-0100-16 CoreLine 72.5° Tool Holder w/ Top Clamping 8467901693 | |
| EDP # | 0836412 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Steel (Blue) Aluminum (Green) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |

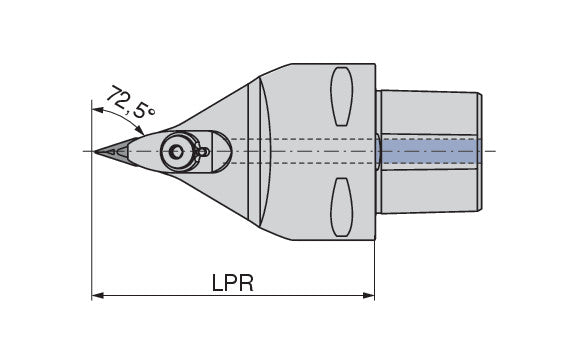

| Protruding length / LPR | 3.9370" | 100.000 mm |
| Insert | VN.. 1604 | |
| torque moment | 10 Nm | |
| Machine interface size | PSC 63 | |
| Version | Neutral | |
Background Information:
PSC, or 'Polygonal Shank Coupling (ISO 26623)', holders are made to work with the Sandvik Capto interface without licensing the trademark name.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
