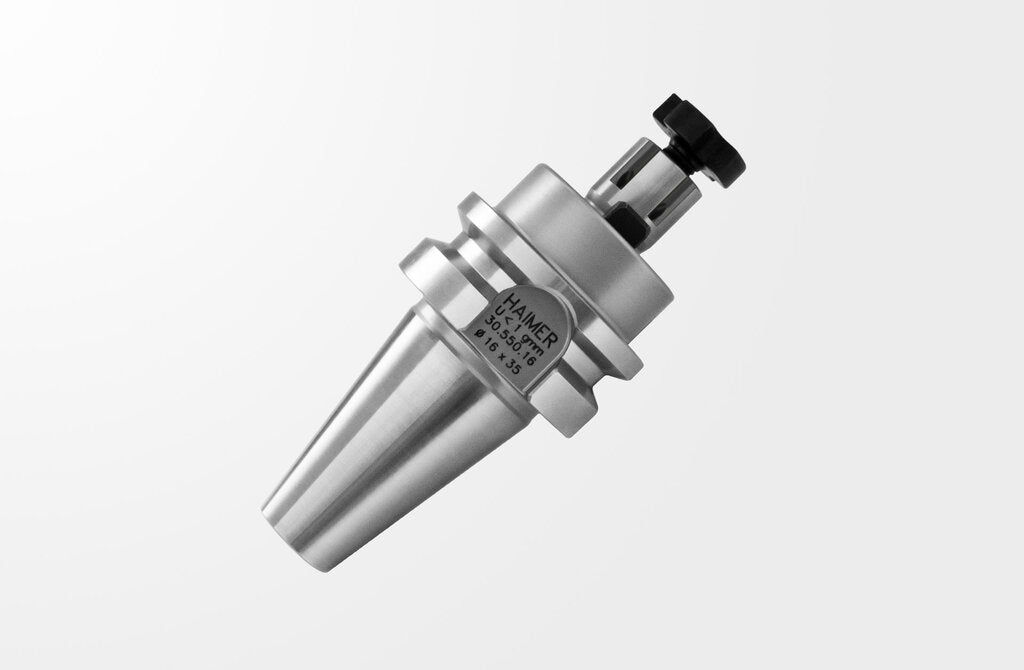

Haimer Face Mill Arbor, D = 16 mm, short, BT30 Tool Holder 30.550.16.KKB (0837306)
Haimer Face Mill Arbor, D = 16 mm, short, BT30 Tool Holder 30.550.16.KKB (0837306)
Couldn't load pickup availability
Haimer Part Number: 30.550.16.KKB
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

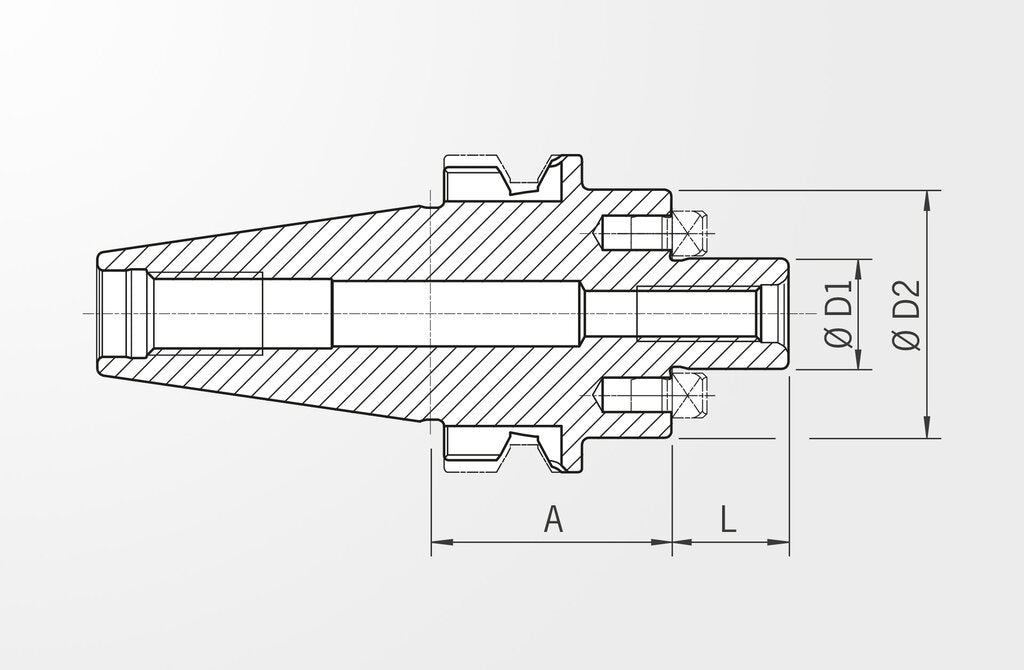

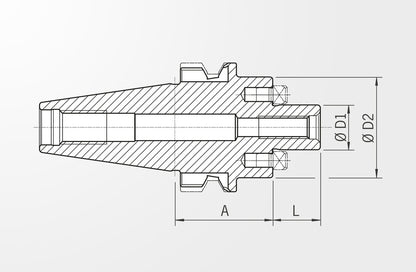

| Properties | ||
|---|---|---|
| Name | Haimer Face Mill Arbor, D = 16 mm, short, BT30 Tool Holder 30.550.16.KKB | |
| EDP # | 0837306 | |
| Weight (1 pc.) | 19.0 oz | 540 g |
| Clamping diameter / D1 | 0.6300" | 16.000 mm |
| Length A / A | 1.3780" | 35.000 mm |
| A-length version | short | |
| Diameter 2 / D2 | 1.4170" | 36.000 mm |
| Length / L | 0.6690" | 17.000 mm |
| Interface | BT30 | |
Product Features:
- Face Mill Arbor, JIS B 6339-2, BT30
- Chuck body fine balanced U < 1 gmm
- All functional surfaces fine machined
- Taper tolerance AT3
- For holding face mill cutters and milling cutters with radial driving slot DIN 1880.
- Similar to DIN 6357 with steep taper JIS B 6339-2 BT30 form JD.
- Central coolant supply and coolant channels through the flange which can be sealed again
- With tightening bolt
-
Background Information:
The BT system utilizes a proven "fast taper" (7:24) self-releasing format and is common among non-European machine tools. Note that ISO, CAT, BT, and SK are NOT interchangeable even though they use the same basic taper!.
