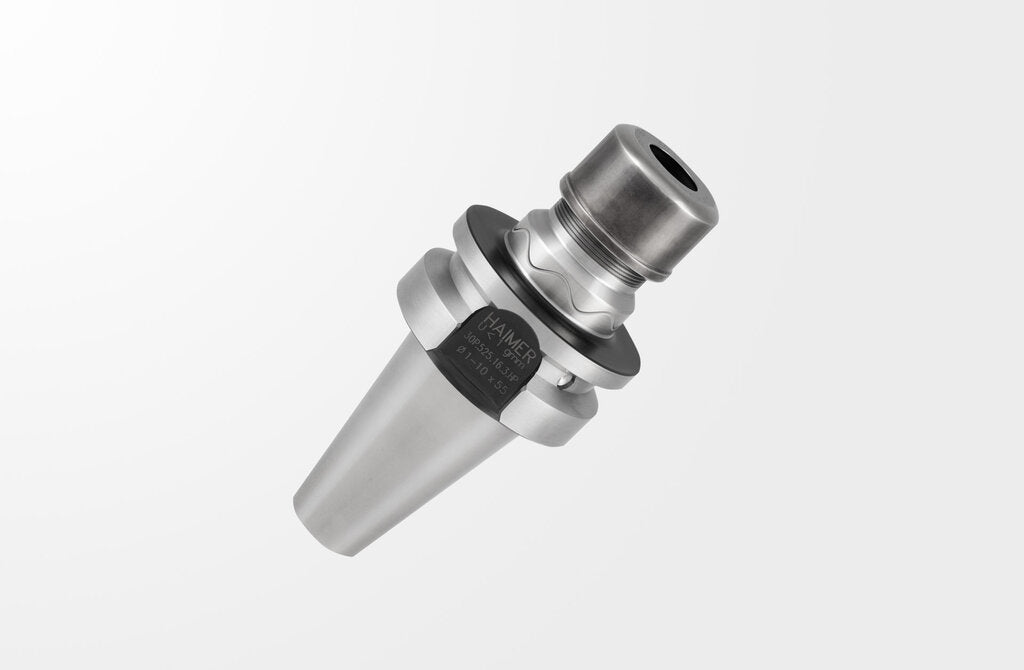

Haimer High Prec. Collet Chuck ER25 ZG60, BT30 w/ Face Contact (without Balancing thread) Tool Holder 30P.529.25.3.060.HP (0837949)

Haimer Part Number: 30P.529.25.3.060.HP

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- High Precision Collet Chuck, similar JIS B 6339-2, BT30 with face contact

- Chuck body fine balanced G2.5 30.000 rpm or U < 1 gmm

- All functional surfaces fine machined

- Coolant supply form JD

- More accurate than DIN

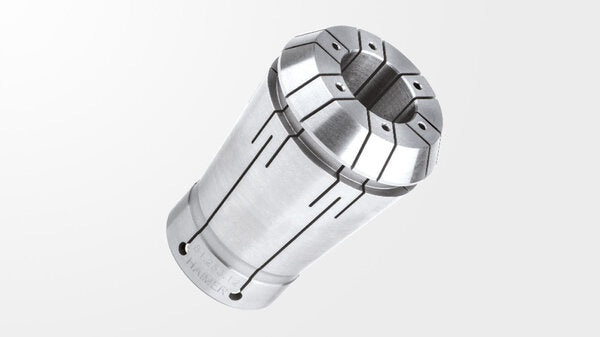

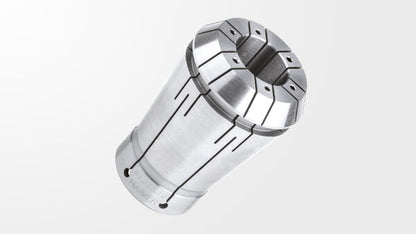

- For clamping tools with cylindrical shank in HAIMER Power Collets and ER collets according to ISO 15488.

- Additional support on the flange surface for more rigidity

- High runout accuracy: 0.003 mm at 3 × D with HAIMER Power Collets

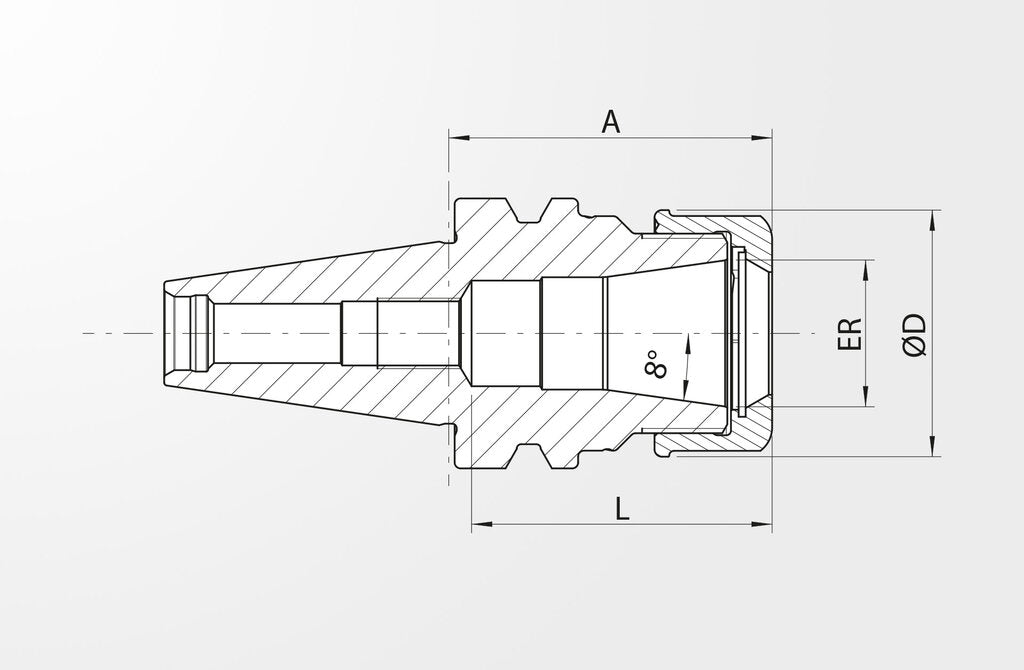

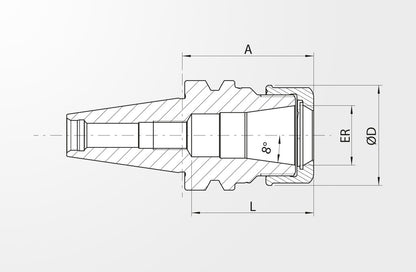

- Also suitable for standard collets ER according to ISO 15488 (Please note when use with standard ER collets the gage length A will vary.)

- High rigidity

- Smoother running thanks to vibration absorbing geometry, therefore better surface quality and protection of tools, spindles and machines

- Increased machining capacity due to higher spindle speeds, higher feed rates and larger cutting depths

- Shorter processing times, higher machining accuracy, high clamping force

- Equally suited to high-speed manufacturing and heavy milling

- With threaded holes in order to balance with balancing screws

- With a specially coated smooth locknut, balanced at < 1gmm

- Compatible with Big-Plus spindles

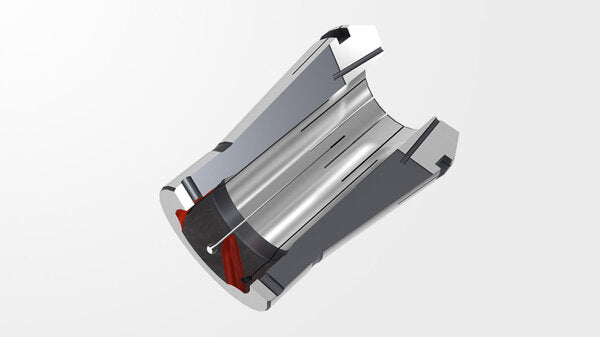

- For a constant and acurate cooling of the cutting tool we recommend Power Collets with Cool Jet.

-

Background Information:

The ER tool holder system was invented by Fritz Weber, founder of Rego-Fix, and released in 1972. The ER-type system was originally used as a broom head to handle interface! The R in "ER" stands for Rego-Fix, and represents the company's modification to common "E" collet design of the early 20th century. Specifically, the modification was adding a groove to the collet which keeps it captive in the nut while installing/removing; eliminating the problem of collets getting stuck in the holders. Upon patent expiry the system was standardized in 1993 under DIN 6499 and is today the most recognizable and commonly used collet system worldwide.

The classic ER interface, tried and true.

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
