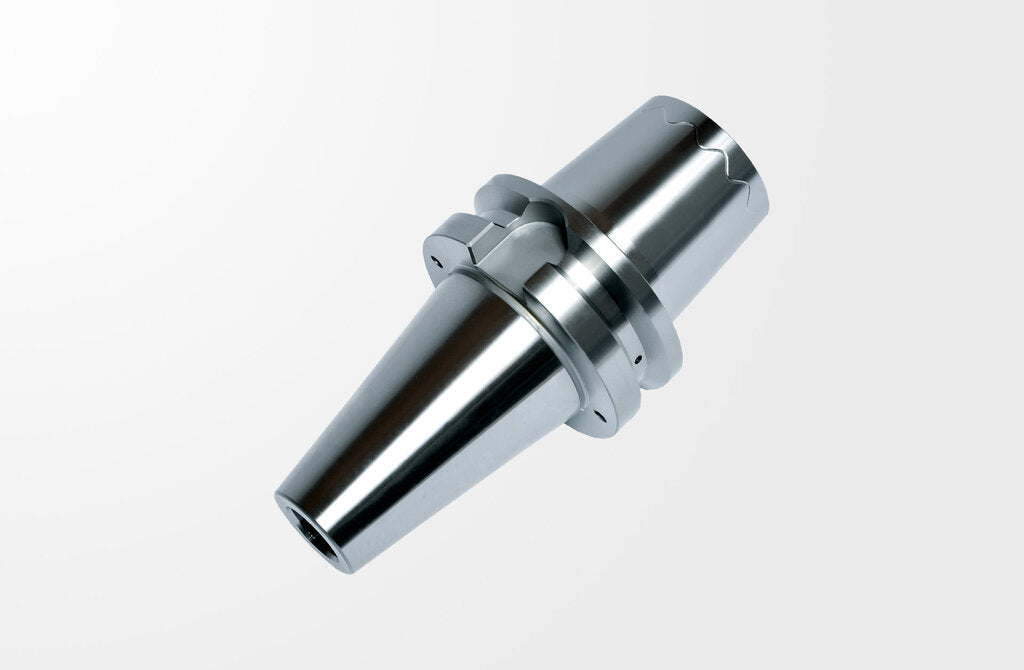

Haimer Heavy Duty Shrink Chuck, D = 1 1/2'', short, BT50 w/ Face Contact Tool Holder 50P.650.11/2Z.6 (0838240)

Haimer Part Number: 50P.650.11/2Z.6

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Heavy Duty Shrink Chuck, similar JIS B 6339-2, BT50 with face contact

- Chuck fine balanced G2.5 at 25.000 rpm

- All functional surfaces fine machined

- Taper tolerance AT3

- Coolant supply form JD/JF

- Shrink fit chuck suitable to all high performance inductive shrink fit units.

- For heavy machining applications it is now possible to replace the Weldon tool holders finally. Heavy Duty Chuck is the shrink fit chuck for extreme cases. The contour is optimized for highest rigidity and clamping force.

- Smooth clamping of the tool shank

- No deformation at the tool shank after shrink process

- High runout accuracy: 3 μm

- Reinforced outer contour

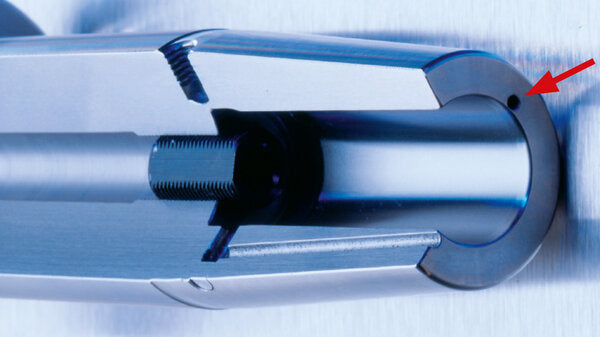

- With dirt groove in the clamping bore

- With threaded holes in order to balance with balancing screws

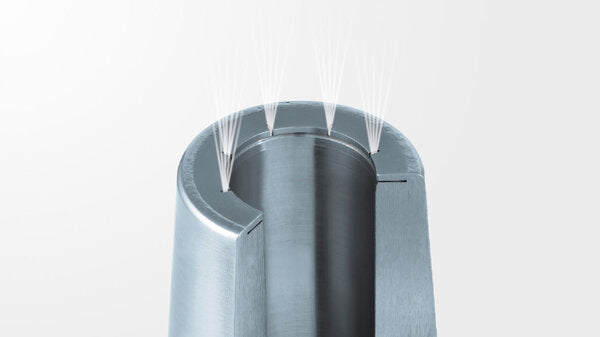

- Cool Jet bores that can be sealed included

- Without backup screw

- For RPM higher 8000 U/min we recommend the optional cooling system Cool Flash. (on request)

-
