Haimer Quick Change Tapping Chuck Size 01, Type FH, short, HSK-A63 Tool Holder A63.070.01 (0839064)

Haimer Part Number: A63.070.01

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

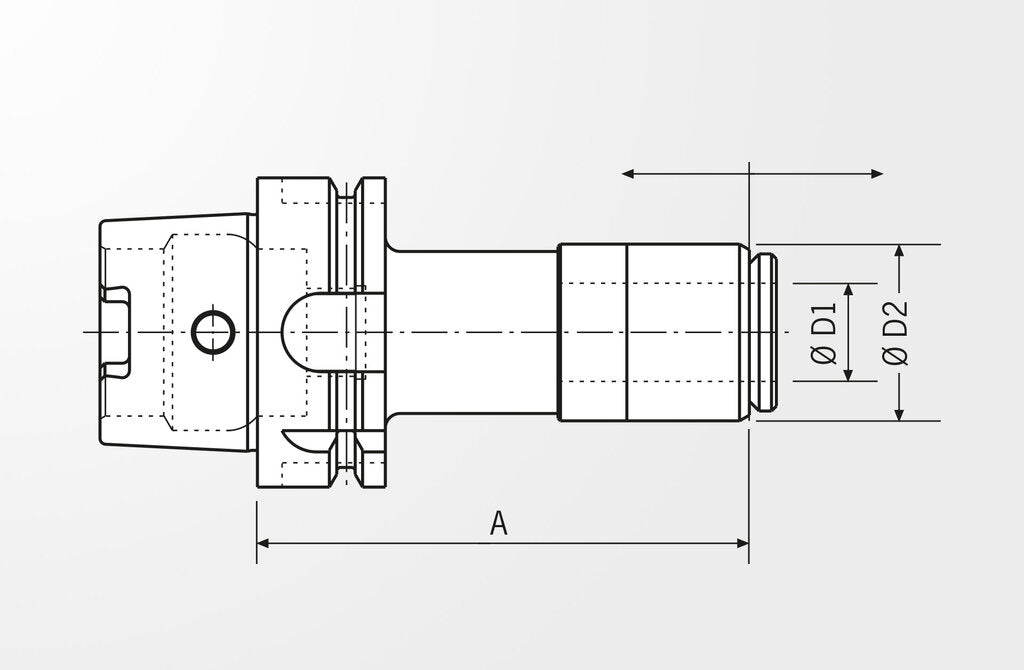

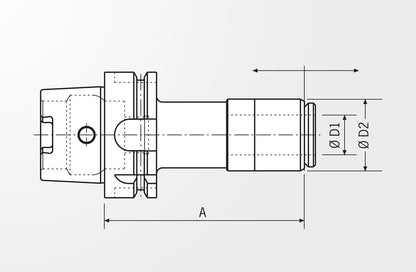

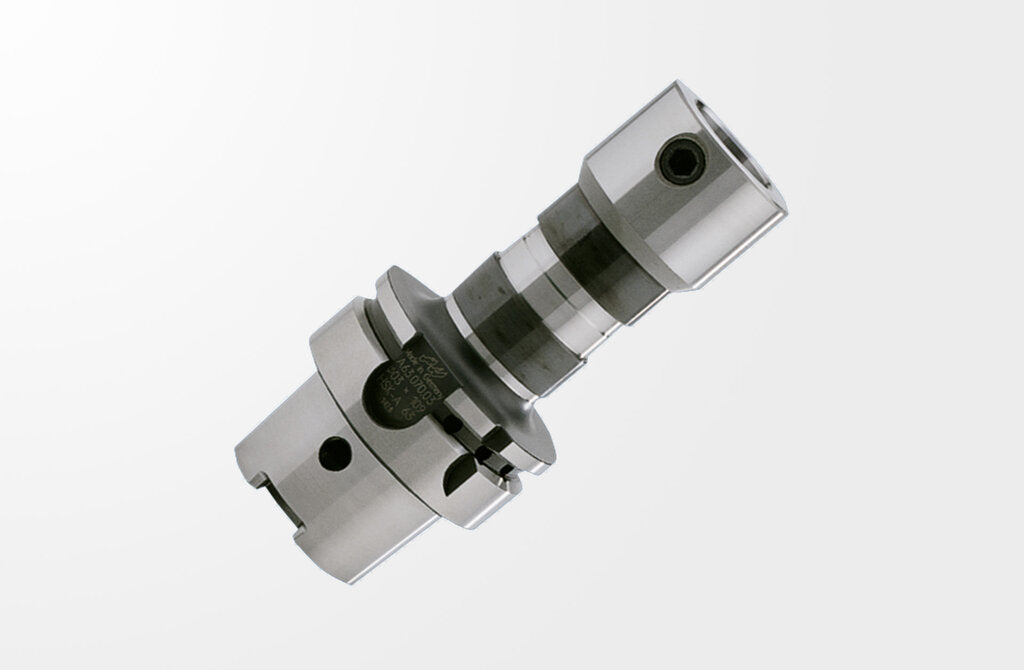

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Quick Change Tapping Chuck, DIN 69893-1, HSK-A63

- All functional surfaces fine machined

- More accurate than DIN

- Internal highpressure cooling up to 50 bar

- For tapping preferrably an NC-milling machines.

- Advantages:

- Axial length compensation

- Interior high-pressure cooling upto 50 bar

- Newly developped adapter for high clamping security with interior cooling

- High centering precision

- Not compatible with system BILZ!

- Without coolant tube

- Fine-balancing (on request)

-

Background Information:

The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for "Hohl Shaft Kegel" - "Hollow Shank Taper", and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.

The HSK-A form is probably the most common in the HSK family, and features drive slots which serve both to increase torque capability and provide rotational indexing (unequal slots). External features provide an interface for automatic tool change grippers and carousels. There is a bore milled directly into the side of the interface for RFID chip placement, and a threaded internal passage for coolant-through operation.

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
