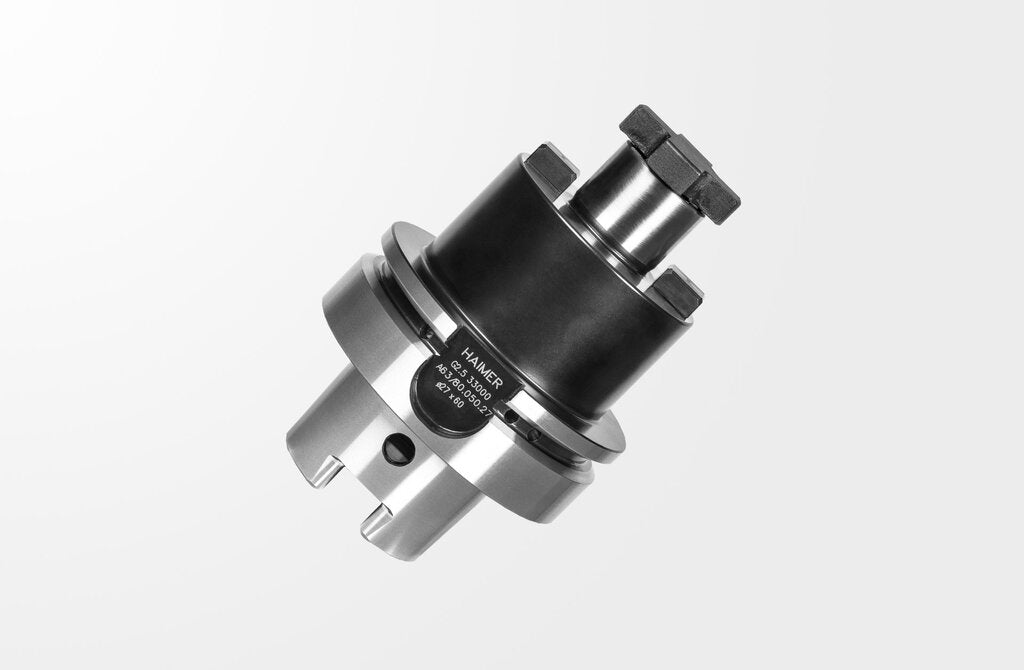

Haimer Face Mill Arbor, D = 22 mm, short, HSK-A63/80 Tool Holder A63/80.050.22 (0839499)
Haimer Face Mill Arbor, D = 22 mm, short, HSK-A63/80 Tool Holder A63/80.050.22 (0839499)
Couldn't load pickup availability
Haimer Part Number: A63/80.050.22
HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

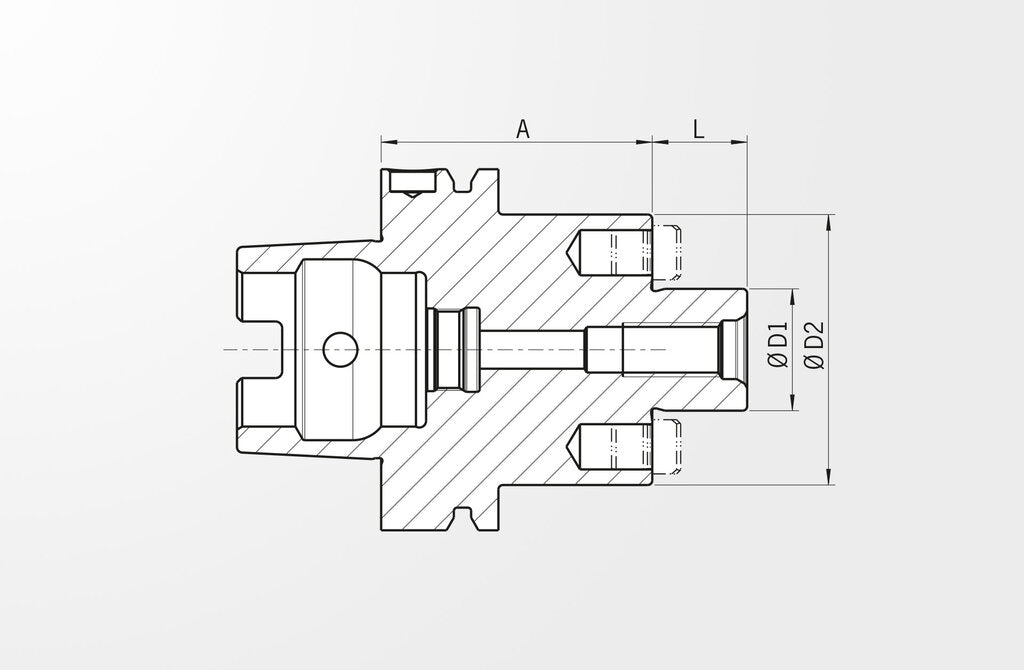

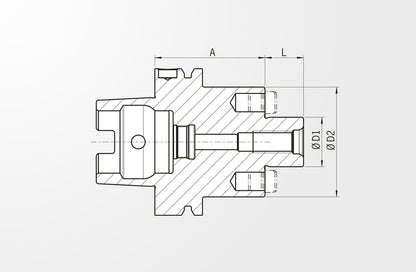

| Properties | ||
|---|---|---|
| Name | Haimer Face Mill Arbor, D = 22 mm, short, HSK-A63/80 Tool Holder A63/80.050.22 | |
| EDP # | 0839499 | |
| Weight (1 pc.) | 56.0 oz | 1601 g |
| Clamping diameter / D1 | 0.8660" | 22.000 mm |
| Length A / A | 1.9690" | 50.000 mm |
| A-length version | short | |
| Diameter 2 / D2 | 1.8900" | 48.000 mm |
| Length / L | 0.7480" | 19.000 mm |
| Interface | HSK-A63/80 | |
Product Features:
- Face Mill Arbor, DIN 69882-3, HSK-A63/80
- Taper HSK-A63/Flange 80 mm
- Chuck body fine balanced G2.5 33.000 1/min or U < 1 gmm
- All functional surfaces fine machined
- More accurate than DIN
- For holding face mill cutters and cutters with radial driving slot DIN 1880.
- DIN 69882-3
- Incl. pocket for data chip
- With tightening bolt
- Without coolant tube
- Optional with coolant exit bores on the end face for milling cutters with central cooling (on request)
-
Company History:
Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
