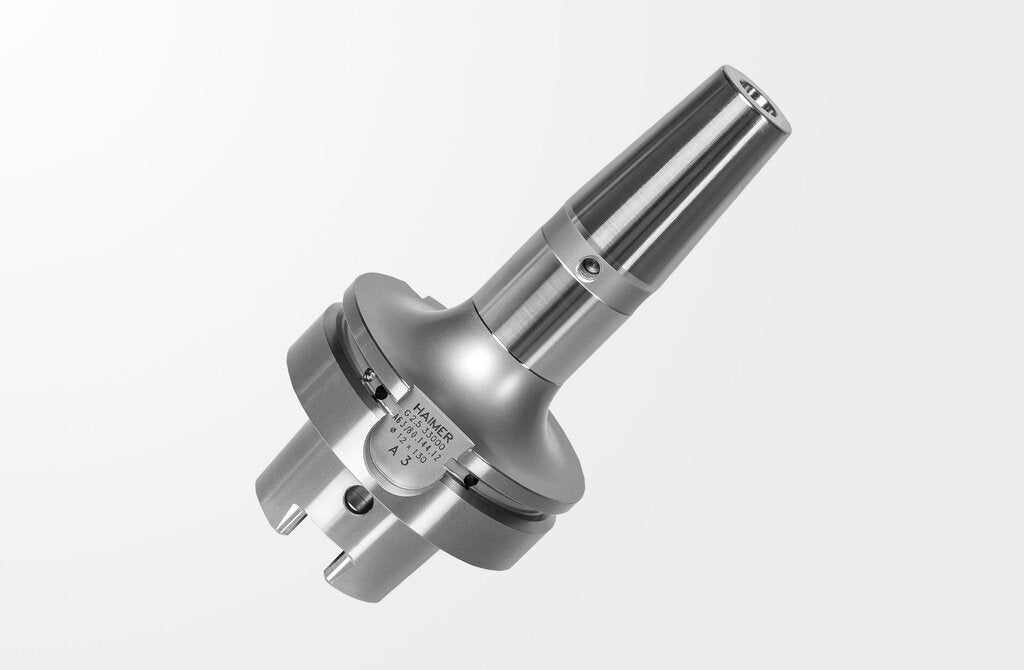

Haimer Shrink Fit Chuck Standard, D = 14 mm, ZG130, HSK-A63/80 Tool Holder A63/80.144.14 (0839507)

Haimer Part Number: A63/80.144.14

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Shrink Fit Chuck Standard Version, DIN 69893-1, HSK-A63/80

- Taper HSK-A63/Flange 80 mm

- Chuck body fine balanced G2.5 33.000 1/min or U < 1 gmm

- All functional surfaces fine machined

- More accurate than DIN

- Shrink fit chuck for clamping shank tools, suitable for use with all available shrink fit units.

- DIN 69893-1

- Heat resistant hot-working steel

- Hardened 54 -2 HRC

- For HSS and solid carbide tools

- Shank tolerance h6

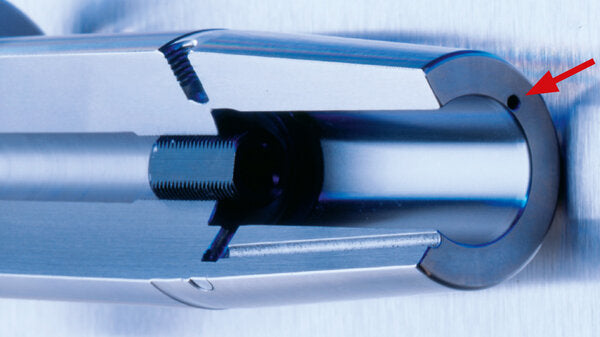

- With threaded holes in order to balance with balancing screws

- Incl. pocket for data chip

- With backup screw

- Without coolant tube

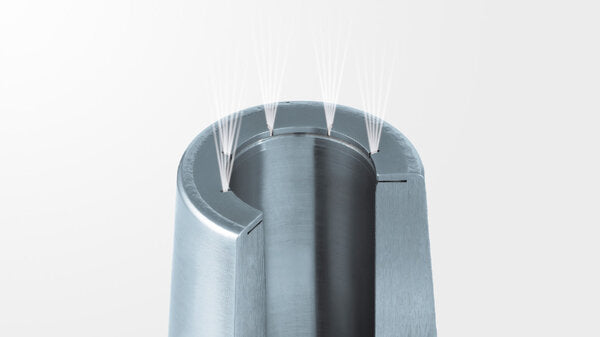

- For a constant and acurate cooling of the cutting tool we recommend the optional cooling system Cool Jet.

- For RPM higher 8000 U/min we recommend the optional cooling system Cool Flash. (on request)

-
