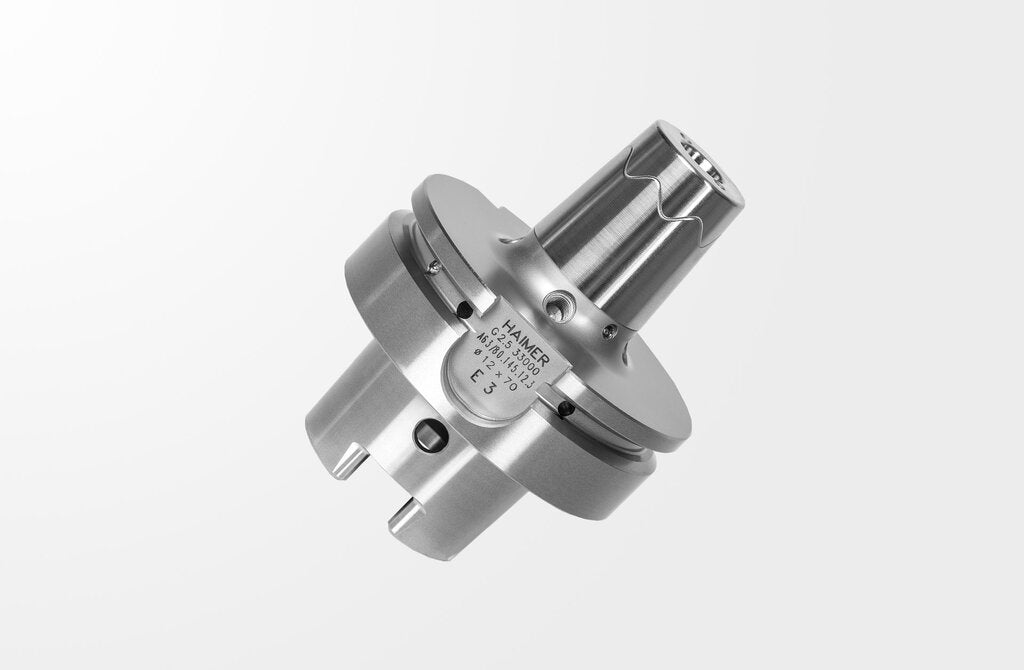

Haimer Power Shrink Chuck, D = 10 mm Extra Ultra short, HSK-A63/80 Tool Holder A63/80.145.10.5 (0839515)

Haimer Part Number: A63/80.145.10.5

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Power Shrink Chuck, DIN 69893-1, HSK-A63/80

- (Taper HSK-A63 / Flange 80 mm)

- Chuck body fine balanced G2.5 33.000 1/min or U < 1 gmm

- All functional surfaces fine machined

- More accurate than DIN

- Shrink fit chuck suitable to all inductive shrink fit units.

- The Power Shrink Chuck is the shrink fit chuck for highest machining capacity in high-speed manufacturing. The optimized design combines high rigidity with vibration damping, therefore giving more protection to machines, spindles and cutting tools.

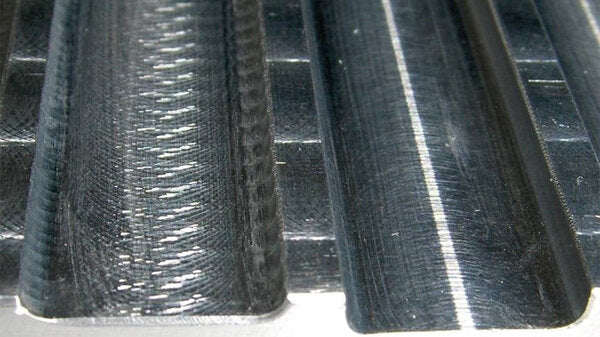

- Increased machining capacity due to higher spindle speeds, higher feed rates and larger cutting depths

- Shorter processing times

- Higher machining accuracy

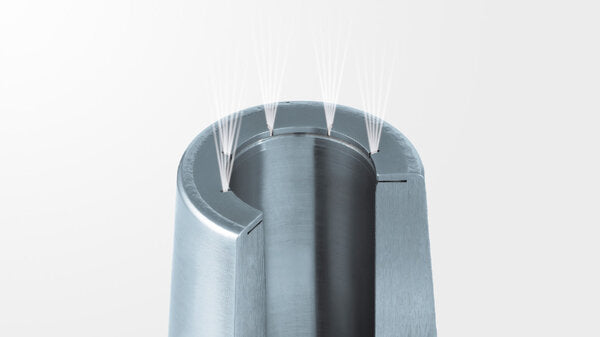

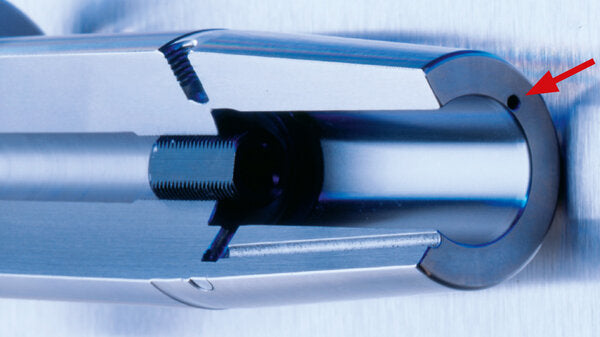

- With Cool-Jet bores (sealed)

- With threaded holes in order to balance with balancing screws

- Incl. hole for data chip

- With thread for coolant tube

- Without backup screw

-
