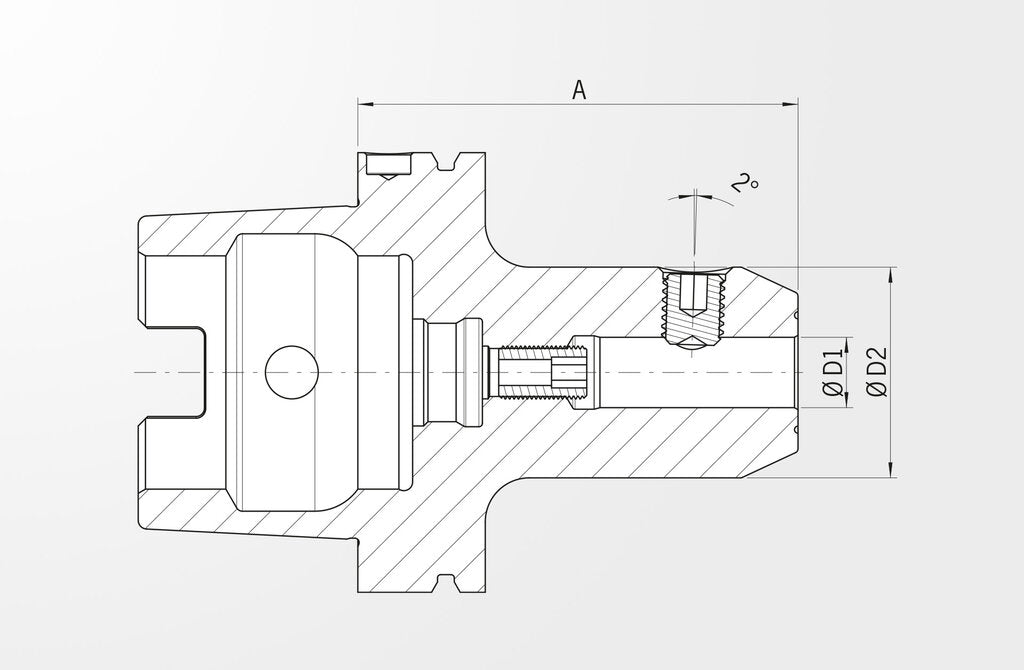

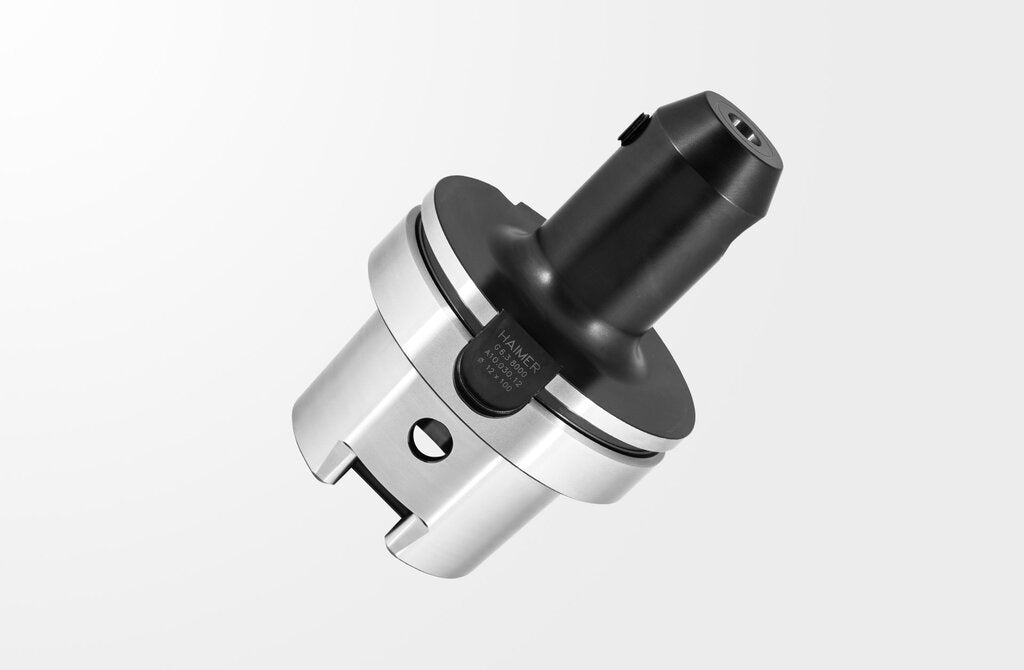

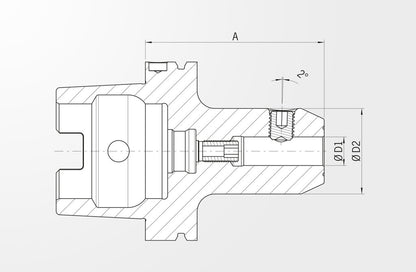

Haimer Whistle Notch Tool Holder, D = 20 mm, short, HSK-A100 A10.030.20 (0839667)

Haimer Part Number: A10.030.20

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Whistle Notch Tool Holder, DIN 69893-1, HSK-A100

- Chuck body fine balanced G6.3 at 8.000 rpm

- All functional surfaces fine machined

- More accurate than DIN

- For clamping cutters with cylindrical shank and inclined flat similar to DIN 1835-E and DIN 6535-HE.

- DIN 69882-2

- With clamping screw

- With backup screw

- Without coolant tube

- Fine-balancing (on request). For a constant and acurate cooling of the cutting tool we recommend the optional cooling system Cool Jet.

-

Background Information:

The HSK system was invented in Germany in the 1990's and is now very commonly found in European machine tools and spindles. HSK stands for "Hohl Shaft Kegel" - "Hollow Shank Taper", and as the name implies this type of interface has a cavity running through it. Unlike classical 'pull-stud' designs (CAT, BT, SK etc), HSK uses an internal drawbar mechanism which results in clamping force increasing with rotational speed. Additionally, the form features dual contact; on an axial face and the cone (1:10), which puts HSK in the upper echelons of tool holder performance.

The HSK-A form is probably the most common in the HSK family, and features drive slots which serve both to increase torque capability and provide rotational indexing (unequal slots). External features provide an interface for automatic tool change grippers and carousels. There is a bore milled directly into the side of the interface for RFID chip placement, and a threaded internal passage for coolant-through operation.

The Weldon interface utilizes a straight bore and one or more setscrews to grip the tool shank, and was invented circa 1918 by Carl A. Bergstrom in Cleveland, USA. Although seemingly crude and archaic, this style of tool holder interface often outperforms more modern systems when it comes to extremely heavy machining loads, and cannot be beat for simplicity.

Company History:

Family-owned since 1977, HAIMER has grown from a precision parts specialist into a global tooling solutions supplier with operations across Europe, North America, and Asia.
