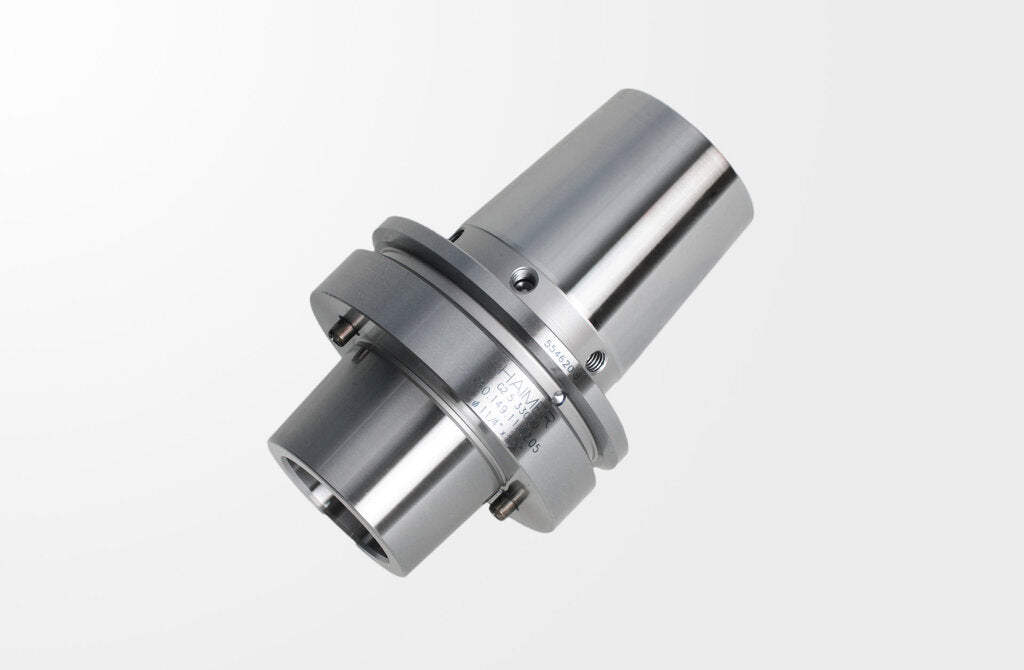

Haimer Shrink Fit Chuck Standard, D = 10 mm Extra Ultra short, HSK-F80M Tool Holder F80M.145.10.5 (0840461)

Haimer Part Number: F80M.145.10.5

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Shrink Fit Chuck Standard Version, DIN 69893-6, HSK-F80 Makino

- Chuck fine balanced G2.5 at 33.000 rpm

- All functional surfaces fine machined

- More accurate than DIN

- M6 balancing thread

- With thread for coolant supply

- Shrink fit chuck for clamping shank tools, suitable for use with all available shrink fit units.

- The HAIMER HSK-F80 Makino Shrink fit Chucks provide the highest machining capacity in high-speed manufacturing. The optimized design combines high rigidity with vibration damping, therefore giving more protection to machines, spindles and cutting tools.

- All pre-balanced to G2.5 at 33,000 RPM or U < 1 gmm

- Short gage length per machine builders recommendation

- Vibration damping

- Higher clamping forces

- Equally suited to high-speed manufacturing and heavy milling

- Increased machining capacity due to higher spindle speeds, higher feed rates and larger cutting depths

- Shorter processing times

- Quieter running, therefore better surface quality and protection of cutting tools, machine spindles and machines

- Higher machining accuracy

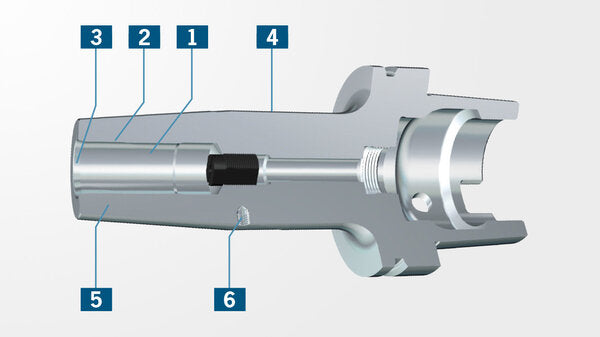

- Key features:

- Heat resistant hot-working steel

- Hardened 54 -2 HRC

- For HSS and solid carbide tools

- Shank tolerance h6

- With threaded holes in order to balance with balancing screws

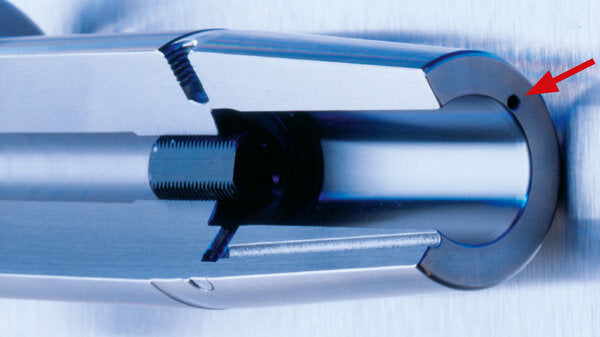

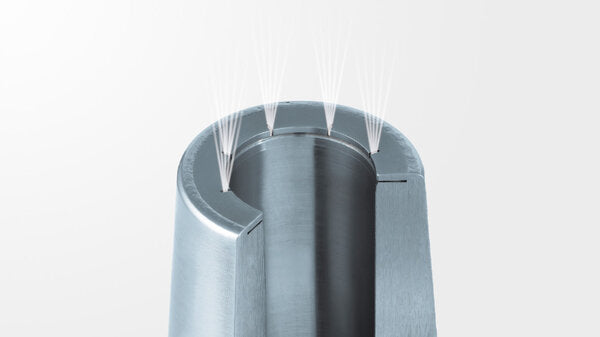

- For a constant and acurate cooling of the cutting tool we recommend the optional cooling system Cool Jet.

-
