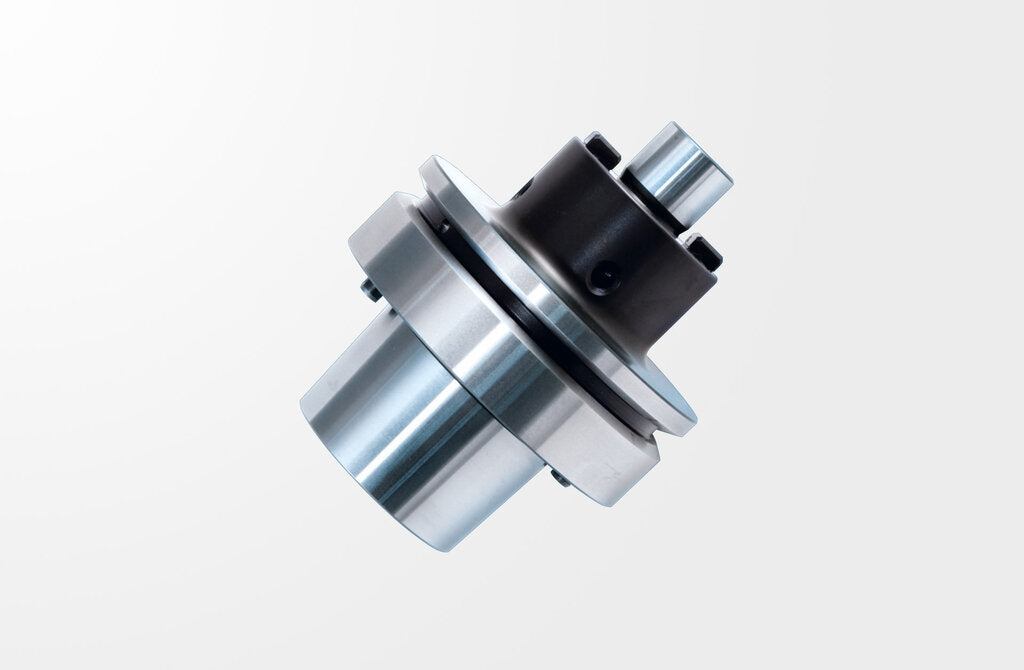

Haimer Face Mill Arbor, D = 1'', short, HSK-F80M Tool Holder F80M.051.1Z (0840489)

Haimer Part Number: F80M.051.1Z

HAIMER is a global leader in tool holding, balancing, and presetting technology. Founded in 1977 and headquartered in Igenhausen, Germany, HAIMER offers premium shrink fit chucks, tool balancing machines, and precision tool holders trusted in high-performance machining environments worldwide.

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

Product Features:

- Face Mill Arbor, DIN 69893-6, HSK-F80 Makino

- Chuck body fine balanced G2.5 33.000 1/min or U < 1 gmm

- Balanceable via screws M6

- All functional surfaces fine machined

- With thread for coolant supply

- The HAIMER HSK-F80 Makino shrink fit chucks provide the highest machining capacity in High Speed machining. The optimized design combines high rigidity with vibration damping, therefore giving more protection to machines, spindles and cutting tools.

- All standard balanceable via set screws

- Short gage length per machine builders recommendation

- Damping vibrations, high clamping force

- Equally suited to High Speed machining and heavy milling

- Highest cutting performance with higher spindle speeds, higher feeds and larger cutting depths

- Shorter cycle times

- Quieter running, therefore better surface quality and protection of cutting tools, machine spindles and machines

- Higher machining accuracy

- Heat resistant hot-working steel

- Hardened 54 -2 HRC

- For HSS and solid carbide tools

- Shank tolerance h6

- With thread for coolant tube

- For a constant and acurate cooling of the cutting tool we recommend the optional cooling system Cool Jet or Cool Flash.

-
